PANDUIT 双孔AOA体育(China)官方网站

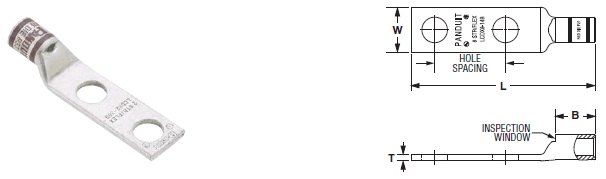

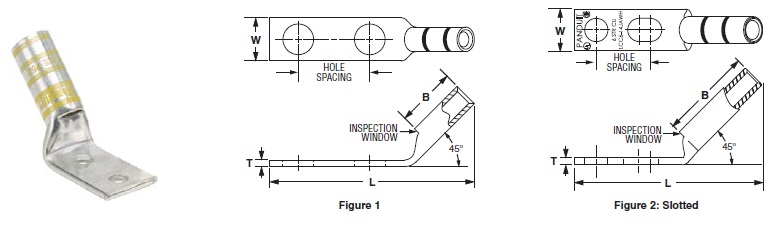

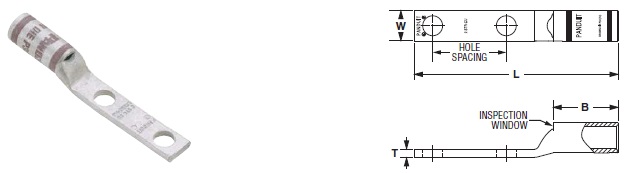

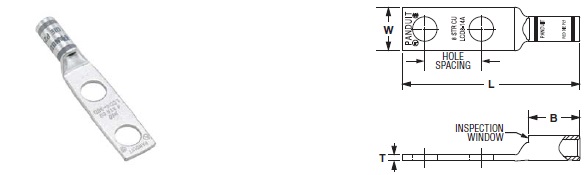

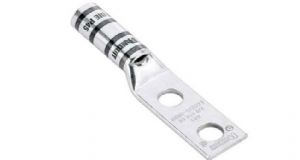

Code Conductor, Two-Hole, Standard Barrel with Window Lug

Type LCD


Part
Copper Conductor
Size
Stud Hole
Size
(In.)
Stud Hole
Spacing
W B T L
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
LCD10-10A-L*
#14 – #10
AWG STR,
#12 – #10
AWG SOL
#10 0.63 0.38 0.38 0.06 1.69 7/16
LCD10-14A-L* 1/4 0.63 0.42 0.38 0.05 1.78 7/16
LCD10-14B-L* 1/4 0.75 0.42 0.38 0.05 1.91 7/16
LCD10-14D-L* 1/4 1 0.42 0.38 0.05 2.16 7/16
LCD10-38D-L* 3/8 1 0.56 0.38 0.04 2.38 7/16
LCD8-10A-L #8 AWG #10 0.63 0.41 0.56 0.08 1.88 Red P21 49 21 5/8
LCD8-14A-L 1/4 0.63 0.48 0.56 0.07 1.97 Red P21 49 21 5/8
LCD8-14B-L 1/4 0.75 0.48 0.56 0.07 2.09 Red P21 49 21 5/8
LCD8-14D-L 1/4 1 0.48 0.56 0.07 2.34 Red P21 49 21 5/8
LCD8-38D-L 3/8 1 0.6 0.56 0.05 2.56 Red P21 49 21 5/8
LCD6-10A-L #6 AWG #10 0.63 0.46 0.81 0.08 2.15 Blue P24 7 24 7/8
LCD6-10B-L #10 0.75 0.46 0.81 0.08 2.27 Blue P24 7 24 7/8
LCD6-10D-L #10 1 0.46 0.81 0.08 2.52 Blue P24 7 24 7/8
LCD6-14A-L 1/4 0.63 0.48 0.81 0.08 2.24 Blue P24 7 24 7/8
LCD6-14B-L 1/4 0.75 0.48 0.81 0.08 2.36 Blue P24 7 24 7/8
LCD6-14D-L 1/4 1 0.48 0.81 0.08 2.61 Blue P24 7 24 7/8
LCD6-56D-L 5/16 1 0.56 0.81 0.07 2.73 Blue P24 7 24 7/8
LCD6-38D-L 3/8 1 0.62 0.81 0.06 2.83 Blue P24 7 24 7/8
LCD4-10A-L
#4 – #3
AWG STR,
#2 AWG SOL
#10 0.63 0.55 0.81 0.09 2.17 Gray P29 8 29 7/8
LCD4-10B-L #10 0.75 0.55 0.81 0.09 2.29 Gray P29 8 29 7/8
LCD4-14A-L 1/4 0.63 0.55 0.81 0.09 2.26 Gray P29 8 29 7/8
LCD4-14B-L 1/4 0.75 0.55 0.81 0.09 2.38 Gray P29 8 29 7/8
LCD4-14D-L 1/4 1 0.55 0.81 0.09 2.63 Gray P29 8 29 7/8
LCD4-38D-L 3/8 1 0.62 0.81 0.08 2.85 Gray P29 8 29 7/8
LCD2-14A-Q #2 AWG 1/4 0.63 0.6 0.88 0.1 2.4 Brown P33 10 33 15/16
LCD2-14B-Q 1/4 0.75 0.6 0.88 0.1 2.52 Brown P33 10 33 15/16
LCD2-14D-Q 1/4 1 0.6 0.88 0.1 2.77 Brown P33 10 33 15/16
LCD2-56B-Q 5/16 0.75 0.66 0.88 0.1 2.65 Brown P33 10 33 15/16
LCD2-38D-Q 3/8 1 0.66 0.88 0.1 3 Brown P33 10 33 15/16
LCD2-12-Q 1/2 1.75 0.75 0.88 0.08 4.14 Brown P33 10 33 15/16
LCD1-14A-E #1 AWG 1/4 0.63 0.7 0.88 0.11 2.42 Green P37 11 37 15/16
LCD1-14B-E 1/4 0.75 0.7 0.88 0.11 2.54 Green P37 11 37 15/16
LCD1-56C-E 5/16 0.88 0.7 0.88 0.11 2.79 Green P37 11 37 15/16
LCD1-38D-E 3/8 1 0.7 0.88 0.11 2.99 Green P37 11 37 15/16
LCD1-12-E 1/2 1.75 0.75 0.88 0.09 4.16 Green P37 11 37 15/16
LCD1/0-14A-X 1/0 AWG 1/4 0.63 0.76 0.94 0.12 2.57 Pink P42 12 42 1
LCD1/0-14B-X 1/4 0.75 0.76 0.94 0.12 2.7 Pink P42 12 42 1
LCD1/0-56C-X 5/16 0.88 0.76 0.94 0.12 2.88 Pink P42 12 42 1
LCD1/0-38D-X 3/8 1 0.76 0.94 0.12 3.08 Pink P42 12 42 1
LCD1/0-12-X 1/2 1.75 0.8 0.94 0.12 4.25 Pink P42 12 42 1
LCD2/0-14A-X 2/0 AWG 1/4 0.63 0.85 0.98 0.13 2.7 Black P45 13 45 1 1/16
LCD2/0-14B-X 1/4 0.75 0.85 0.98 0.13 2.83 Black P45 13 45 1 1/16
LCD2/0-56C-X 5/16 0.88 0.85 0.98 0.13 2.95 Black P45 13 45 1 1/16
LCD2/0-38D-X 3/8 1 0.85 0.98 0.13 3.14 Black P45 13 45 1 1/16
LCD2/0-12-X 1/2 1.75 0.85 0.98 0.13 4.3 Black P45 13 45 1 1/16
LCD3/0-14B-X 3/0 AWG 1/4 0.75 0.96 1.14 0.13 3.02 Orange P50 14 50 1 3/16
LCD3/0-56D-X 5/16 1 0.96 1.14 0.13 3.27 Orange P50 14 50 1 3/16
LCD3/0-38D-X 3/8 1 0.96 1.14 0.13 3.33 Orange P50 14 50 1 3/16
LCD3/0-12-X 1/2 1.75 0.96 1.14 0.13 4.49 Orange P50 14 50 1 3/16
LCD4/0-14B-X 4/0 AWG 1/4 0.75 1.06 1.19 0.14 3.1 Purple P54 15 54 1 1/4
LCD4/0-38D-X 3/8 1 1.06 1.19 0.14 3.44 Purple P54 15 54 1 1/4
LCD4/0-12-X 1/2 1.75 1.06 1.19 0.14 4.58 Purple P54 15 54 1 1/4
LCD250-38D-X 250 kcmil 3/8 1 1.17 1.25 0.14 3.54 Yellow P62 16 62 1 5/16
LCD250-12-X 1/2 1.75 1.17 1.25 0.14 4.68 Yellow P62 16 62 1 5/16
LCD300-38D-X 300 kcmil 3/8 1 1.19 1.44 0.16 3.74 White P66 17 66 1 1/2
LCD300-12-X 1/2 1.75 1.19 1.44 0.16 4.92 White P66 17 66 1 1/2
LCD350-14B-X 350 kcmil 1/4 0.75 1.28 1.44 0.17 3.3 Red P71 18 71 1 1/2
LCD350-38D-X 3/8 1 1.28 1.44 0.17 3.78 Red P71 18 71 1 1/2
LCD350-12E-X 1/2 1.25 1.28 1.44 0.17 4.33 Red P71 18 71 1 1/2
LCD350-12-X 1/2 1.75 1.28 1.44 0.17 4.96 Red P71 18 71 1 1/2
LCD400-38D-6 400 kcmil 3/8 1 1.39 1.5 0.18 3.86 Blue P76 19 76 1 9/16
LCD400-12-6 1/2 1.75 1.39 1.5 0.18 5.04 Blue P76 19 76 1 9/16
LCD500-14B-6 500 kcmil 1/4 0.75 1.54 1.75 0.22 3.71 Brown P87 20 87 1 13/16
LCD500-38D-6 3/8 1 1.54 1.75 0.22 4.19 Brown P87 20 87 1 13/16
LCD500-12E-6 1/2 1.25 1.54 1.75 0.22 4.74 Brown P87 20 87 1 13/16
LCD500-12-6 1/2 1.75 1.54 1.75 0.22 5.37 Brown P87 20 87 1 13/16
LCD600-38D-6 600 kcmil 3/8 1 1.7 1.75 0.26 4.24 Green P94 22 94 1 13/16
LCD600-12-6 1/2 1.75 1.7 1.75 0.26 5.42 Green P94 22 94 1 13/16
LCD750-38D-6 750 kcmil 3/8 1 1.89 1.88 0.26 4.71 Black P106 24 106 1 15/16
LCD750-12-6 1/2 1.75 1.89 1.88 0.26 5.65 Black P106 24 106 1 15/16
LCD750-58G-6 5/8 1.5 1.89 1.88 0.26 5.46 Black P106 24 106 1 15/16
LCD1000-12-3 1000 kcmil 1/2 1.75 2.17 1.88 0.32 5.77 White P125 27 125 1 15/16
LCD1000-12E-3 1/2 1.25 2.17 1.88 0.32 5.27 White P125 27 125 1 15/16

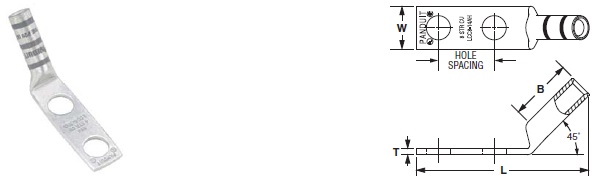

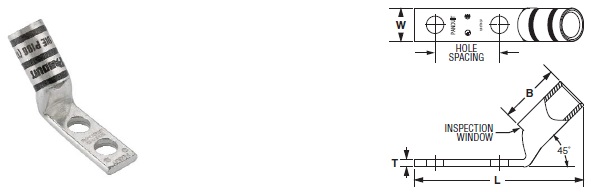

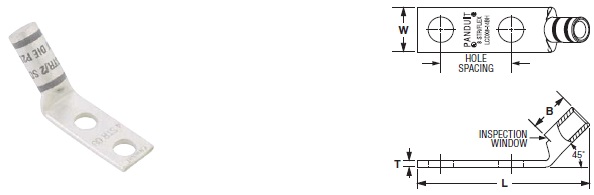

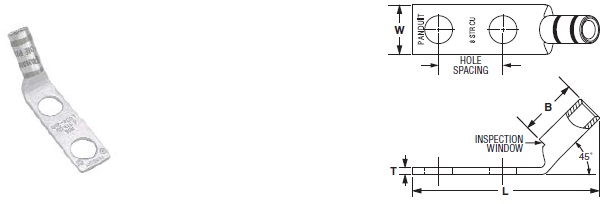

Code Conductor, Two-Hole, Standard Barrel with Window Lug, 45° Angle

Type LCD-H


Part
Copper Conductor
Size
Stud Hole
Size
(In.)
Stud Hole
Spacing
W B T L
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
LCD10-10AH-L*
#14–#10
AWG STR,
#12–#10
AWG SOL
#10 0.63 0.38 0.38 0.06 1.59 7/16
LCD10-14AH-L* 1/4 0.63 0.42 0.38 0.05 1.67 7/16
LCD10-38DH-L* 3/8 1 0.56 0.38 0.04 2.28 7/16
LCD8-10AH-L #8 AWG #10 0.63 0.41 0.56 0.08 1.73 Red P21 49 21 5/8
LCD8-14AH-L 1/4 0.63 0.48 0.56 0.07 1.81 Red P21 49 21 5/8
LCD8-14BH-L 1/4 0.75 0.48 0.56 0.07 1.94 Red P21 49 21 5/8
LCD8-14DH-L 1/4 1 0.48 0.56 0.07 2.19 Red P21 49 21 5/8
LCD8-38DH-L 3/8 1 0.63 0.56 0.05 2.4 Red P21 49 21 5/8
LCD6-10AH-L #6 AWG #10 0.63 0.46 0.81 0.08 1.92 Blue P24 7 24 7/8
LCD6-10BH-L #10 0.75 0.46 0.81 0.08 2.04 Blue P24 7 24 7/8
LCD6-10DH-L #10 1 0.46 0.81 0.08 2.29 Blue P24 7 24 7/8
LCD6-14AH-L 1/4 0.63 0.48 0.81 0.08 2 Blue P24 7 24 7/8
LCD6-14BH-L 1/4 0.75 0.48 0.81 0.08 2.13 Blue P24 7 24 7/8
LCD6-14DH-L 1/4 1 0.48 0.81 0.08 2.38 Blue P24 7 24 7/8
LCD6-56DH-L 5/16 1 0.56 0.81 0.07 2.49 Blue P24 7 24 7/8
LCD6-38DH-L 3/8 1 0.62 0.81 0.06 2.59 Blue P24 7 24 7/8
LCD4-10AH-L
#4–#3
AWG STR,
#2 AWG SOL
#10 0.63 0.55 0.81 0.09 1.94 Gray P29 8 29 7/8
LCD4-10BH-L #10 0.75 0.55 0.81 0.09 2.06 Gray P29 8 29 7/8
LCD4-14AH-L 1/4 0.63 0.55 0.81 0.09 2.03 Gray P29 8 29 7/8
LCD4-14BH-L 1/4 0.75 0.55 0.81 0.09 2.15 Gray P29 8 29 7/8
LCD4-14DH-L 1/4 1 0.55 0.81 0.09 2.4 Gray P29 8 29 7/8
LCD4-38DH-L 3/8 1 0.62 0.81 0.08 2.62 Gray P29 8 29 7/8
LCD2-14AH-Q #2 AWG 1/4 0.63 0.6 0.88 0.1 2.11 Brown P33 10 33 15/16
LCD2-14BH-Q 1/4 0.75 0.6 0.88 0.1 2.24 Brown P33 10 33 15/16
LCD2-14DH-Q 1/4 1 0.6 0.88 0.1 2.49 Brown P33 10 33 15/16
LCD2-56BH-Q 5/16 0.75 0.66 0.88 0.1 2.36 Brown P33 10 33 15/16
LCD2-38DH-Q 3/8 1 0.66 0.88 0.1 2.71 Brown P33 10 33 15/16
LCD2-12H-Q 1/2 1.75 0.75 0.88 0.08 3.84 Brown P33 10 33 15/16
LCD1-14AH-E #1 AWG 1/4 0.63 0.7 0.88 0.11 2.12 Green P37 11 37 15/16
LCD1-14BH-E 1/4 0.75 0.7 0.88 0.11 2.25 Green P37 11 37 15/16
LCD1-56CH-E 5/16 0.88 0.7 0.88 0.11 2.5 Green P37 11 37 15/16
LCD1-38DH-E 3/8 1 0.7 0.88 0.11 2.7 Green P37 11 37 15/16
LCD1-12H-E 1/2 1.75 0.75 0.88 0.09 3.87 Green P37 11 37 15/16
LCD1/0-14AH-X 1/0 AWG 1/4 0.63 0.76 0.94 0.12 2.26 Pink P42 12 42 1
LCD1/0-14BH-X 1/4 0.75 0.76 0.94 0.12 2.38 Pink P42 12 42 1
LCD1/0-56CH-X 3/8 0.88 0.76 0.94 0.12 2.56 Pink P42 12 42 1
LCD1/0-38DH-X 1/2 1 0.76 0.94 0.12 2.76 Pink P42 12 42 1
LCD1/0-12H-X 1/2 1.75 0.8 0.94 0.12 3.93 Pink P42 12 42 1
LCD2/0-14AH-X 2/0 AWG 1/4 0.63 0.85 0.98 0.13 2.39 Black P45 13 45 1  1/16
LCD2/0-14BH-X 1/4 0.75 0.85 0.98 0.13 2.52 Black P45 13 45 1  1/16
LCD2/0-56CH-X 5/16 0.88 0.85 0.98 0.13 2.64 Black P45 13 45 1  1/16
LCD2/0-38DH-X 3/8 1 0.85 0.98 0.13 2.83 Black P45 13 45 1  1/16
LCD2/0-12H-X 1/2 1.75 0.85 0.98 0.13 3.99 Black P45 13 45 1  1/16
LCD3/0-14BH-X 3/0 AWG 1/4 0.75 0.96 1.14 0.13 2.65 Orange P50 14 50 1  3/16
LCD3/0-56DH-X 5/16 1 0.96 1.14 0.13 2.9 Orange P50 14 50 1  3/16
LCD3/0-38DH-X 3/8 1 0.96 1.14 0.13 2.96 Orange P50 14 50 1  3/16
LCD3/0-12H-X 1/2 1.75 0.96 1.14 0.13 4.12 Orange P50 14 50 1  3/16
LCD4/0-14BH-X 4/0 AWG 1/4 0.75 1.06 1.19 0.14 2.72 Purple P54 15 54 1 1/4
LCD4/0-38DH-X 3/8 1 1.06 1.19 0.14 3.05 Purple P54 15 54 1 1/4
LCD4/0-12H-X 1/2 1.75 1.06 1.19 0.14 4.19 Purple P54 15 54 1 1/4
LCD250-38DH-X 250 kcmil 3/8 1 1.17 1.25 0.14 3.13 Yellow P62 16 62 1  5/16
LCD250-12H-X 1/2 1.75 1.17 1.25 0.14 4.27 Yellow P62 16 62 1  5/16
LCD300-38DH-X 300 kcmil 3/8 1 1.17 1.44 0.14 3.36 White P66 17 66 1 1/2
LCD300-12H-X 1/2 1.75 1.17 1.44 0.14 4.54 White P66 17 66 1 1/2
LCD350-14BH-X 350 kcmil 1/4 0.75 1.28 1.44 0.17 2.92 Red P71 18 71 1 1/2
LCD350-38DH-X 3/8 1 1.28 1.44 0.17 3.4 Red P71 18 71 1 1/2
LCD350-12EH-X 1/2 1.25 1.28 1.44 0.17 3.95 Red P71 18 71 1 1/2
LCD350-12H-X 1/2 1.75 1.28 1.44 0.17 4.58 Red P71 18 71 1 1/2
LCD400-38DH-6 400 kcmil 3/8 1 1.39 1.5 0.18 3.5 Blue P76 19 76 1 9/16
LCD400-12H-6 1/2 1.75 1.39 1.5 0.18 4.68 Blue P76 19 76 1 9/16
LCD500-14BH-6 500 kcmil 1/4 0.75 1.54 1.75 0.22 3.27 Brown P87 20 87 1 13/16
LCD500-38DH-6 3/8 1 1.54 1.75 0.22 3.75 Brown P87 20 87 1 13/16
LCD500-12EH-6 1/2 1.25 1.54 1.75 0.22 4.3 Brown P87 20 87 1 13/16
LCD500-12H-6 1/2 1.75 1.54 1.75 0.22 4.93 Brown P87 20 87 1 13/16
LCD600-38DH-6 600 kcmil 3/8 1 1.7 1.75 0.26 3.81 Green P94 22 94 1 13/16
LCD600-12H-6 1/2 1.75 1.7 1.75 0.26 4.99 Green P94 22 94 1 13/16

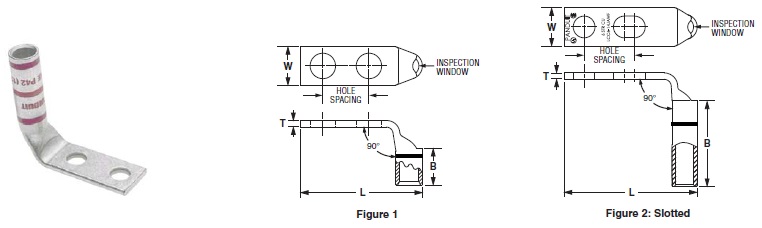

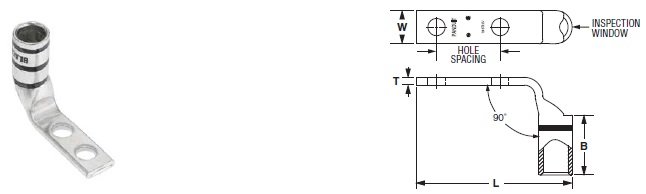

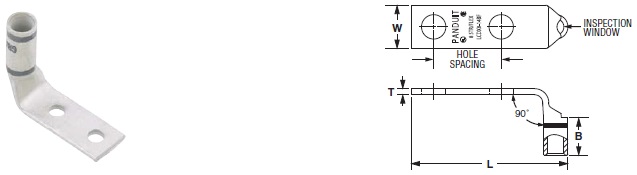

Code Conductor, Two-Hole, Standard Barrel with Window Lug, 90° Angle

Type LCD-F

Part
Copper Conductor
Size
Stud Hole
Size
(In.)
Stud Hole
Spacing
W B T L
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
LCD10-10AF-L*
#14–#10
AWG STR,
#12–#10
AWG SOL
#10 0.63 0.38 0.38 0.06 1.47 7/16
LCD10-14AF-L* 1/4 0.63 0.42 0.38 0.05 1.56 7/16
LCD10-38DF-L* 3/8 1 0.56 0.38 0.04 2.16 7/16
LCD8-10AF-L #8 AWG #10 0.63 0.41 0.56 0.08 1.53 Red P21 49 21 5/8
LCD8-14AF-L 1/4 0.63 0.48 0.56 0.07 1.62 Red P21 49 21 5/8
LCD8-14BF-L 1/4 0.75 0.48 0.56 0.07 1.74 Red P21 49 21 5/8
LCD8-14DF-L 1/4 1 0.48 0.56 0.07 1.99 Red P21 49 21 5/8
LCD8-38DF-L 3/8 1 0.63 0.56 0.05 2.21 Red P21 49 21 5/8
LCD6-10AF-L #6 AWG #10 0.63 0.46 0.81 0.08 1.57 Blue P24 7 24 7/8
LCD6-10BF-L #10 0.75 0.46 0.81 0.08 1.69 Blue P24 7 24 7/8
LCD6-10DF-L #10 1 0.46 0.81 0.08 1.94 Blue P24 7 24 7/8
LCD6-14AF-L 1/4 0.63 0.48 0.81 0.08 1.66 Blue P24 7 24 7/8
LCD6-14BF-L 1/4 0.75 0.48 0.81 0.08 1.78 Blue P24 7 24 7/8
LCD6-14DF-L 1/4 1 0.48 0.81 0.08 2.03 Blue P24 7 24 7/8
LCD6-56DF-L 5/16 1 0.56 0.81 0.07 2.15 Blue P24 7 24 7/8
LCD6-38DF-L 3/8 1 0.62 0.81 0.06 2.25 Blue P24 7 24 7/8
LCD4-10AF-L
#4–#3
AWG STR,
#2 AWG SOL
#10 0.63 0.55 0.81 0.09 1.65 Gray P29 8 29 7/8
LCD4-10BF-L #10 0.75 0.55 0.81 0.09 1.78 Gray P29 8 29 7/8
LCD4-14AF-L 1/4 0.63 0.55 0.81 0.09 1.74 Gray P29 8 29 7/8
LCD4-14BF-L 1/4 0.75 0.55 0.81 0.09 1.87 Gray P29 8 29 7/8
LCD4-14DF-L 1/4 1 0.55 0.81 0.09 2.12 Gray P29 8 29 7/8
LCD4-38DF-L 3/8 1 0.62 0.81 0.08 2.34 Gray P29 8 29 7/8
LCD2-14AF-Q #2 AWG 1/4 0.63 0.6 0.88 0.1 1.86 Brown P33 10 33 15/16
LCD2-14BF-Q 1/4 0.75 0.6 0.88 0.1 1.99 Brown P33 10 33 15/16
LCD2-14DF-Q 1/4 1 0.6 0.88 0.1 2.24 Brown P33 10 33 15/16
LCD2-56BF-Q 5/16 0.75 0.66 0.88 0.1 2.11 Brown P33 10 33 15/16
LCD2-38DF-Q 3/8 1 0.66 0.88 0.1 2.47 Brown P33 10 33 15/16
LCD2-12F-Q 1/2 1.75 0.75 0.88 0.08 3.61 Brown P33 10 33 15/16
LCD1-14AF-E #1 AWG 1/4 0.63 0.7 0.88 0.11 1.94 Green P37 11 37 15/16
LCD1-14BF-E 1/4 0.75 0.7 0.88 0.11 2.06 Green P37 11 37 15/16
LCD1-56CF-E 5/16 0.88 0.7 0.88 0.11 2.31 Green P37 11 37 15/16
LCD1-38DF-E 3/8 1 0.7 0.88 0.11 2.51 Green P37 11 37 15/16
LCD1-12F-E 1/2 1.75 0.75 0.88 0.09 3.68 Green P37 11 37 15/16
LCD1/0-14AF-X 1/0 AWG 1/4 0.63 0.76 0.94 0.12 2.08 Pink P42 12 42 1
LCD1/0-14BF-X 1/4 0.75 0.76 0.94 0.12 2.2 Pink P42 12 42 1
LCD1/0-56CF-X 5/16 0.88 0.76 0.94 0.12 2.38 Pink P42 12 42 1
LCD1/0-38DF-X 3/8 1 0.76 0.94 0.12 2.58 Pink P42 12 42 1
LCD1/0-12F-X 1/2 1.75 0.8 0.94 0.12 3.75 Pink P42 12 42 1
LCD2/0-14AF-X 2/0 AWG 1/4 0.63 0.85 0.98 0.13 2.22 Black P45 13 45 1  1/16
LCD2/0-14BF-X 1/4 0.75 0.85 0.98 0.13 2.34 Black P45 13 45 1  1/16
LCD2/0-56CF-X 5/16 0.88 0.85 0.98 0.13 2.47 Black P45 13 45 1  1/16
LCD2/0-38DF-X 3/8 1 0.85 0.98 0.13 2.66 Black P45 13 45 1  1/16
LCD2/0-12F-X 1/2 1.75 0.85 0.98 0.13 3.82 Black P45 13 45 1  1/16
LCD3/0-14BF-X 3/0 AWG 1/4 0.75 0.96 1.14 0.13 2.42 Orange P50 14 50 1  3/16
LCD3/0-56DF-X 5/16 1 0.96 1.14 0.13 2.67 Orange P50 14 50 1  3/16
LCD3/0-38DF-X 3/8 1 0.96 1.14 0.13 2.73 Orange P50 14 50 1  3/16
LCD3/0-12F-X 1/2 1.75 0.96 1.14 0.13 3.89 Orange P50 14 50 1  3/16
LCD4/0-14BF-X 4/0 AWG 1/4 0.75 1.06 1.19 0.14 2.5 Purple P54 15 54 1 1/4
LCD4/0-38DF-X 3/8 1 1.06 1.19 0.14 2.84 Purple P54 15 54 1 1/4
LCD4/0-12F-X 1/2 1.75 1.06 1.19 0.14 3.98 Purple P54 15 54 1 1/4
LCD250-38DF-X 250 kcmil 3/8 1 1.17 1.25 0.14 2.9 Yellow P62 16 62 1  5/16
LCD250-12F-X 1/2 1.75 1.17 1.25 0.14 4.04 Yellow P62 16 62 1  5/16
LCD300-38DF-X 300 kcmil 3/8 1 1.19 1.44 0.16 2.88 White P66 17 66 1 1/2
LCD300-12F-X 1/2 1.75 1.19 1.44 0.16 4.06 White P66 17 66 1 1/2
LCD350-14BF-X 350 kcmil 1/4 0.75 1.28 1.44 0.17 2.46 Red P71 18 71 1 1/2
LCD350-38DF-X 3/8 1 1.28 1.44 0.17 2.94 Red P71 18 71 1 1/2
LCD350-12EF-X 1/2 1.25 1.28 1.44 0.17 3.49 Red P71 18 71 1 1/2
LCD350-12F-X 1/2 1.75 1.28 1.44 0.17 4.12 Red P71 18 71 1 1/2
LCD400-38DF-6 400 kcmil 3/8 1 1.39 1.5 0.18 3.02 Blue P76 19 76 1 9/16
LCD400-12F-6 1/2 1.75 1.39 1.5 0.18 4.2 Blue P76 19 76 1 9/16
LCD500-14BF-6 500 kcmil 1/4 0.75 1.54 1.75 0.22 2.65 Brown P87 20 87 1 13/16
LCD500-38DF-6 3/8 1 1.54 1.75 0.22 3.13 Brown P87 20 87 1 13/16
LCD500-12EF-6 1/2 1.25 1.54 1.75 0.22 3.68 Brown P87 20 87 1 13/16
LCD500-12F-6 1/2 1.75 1.54 1.75 0.22 4.31 Brown P87 20 87 1 13/16
LCD600-38DF-6 600 kcmil 3/8 1 1.7 1.75 0.26 3.26 Green P94 22 94 1 13/16
LCD600-12F-6 1/2 1.75 1.7 1.75 0.26 4.44 Green P94 22 94 1 13/16

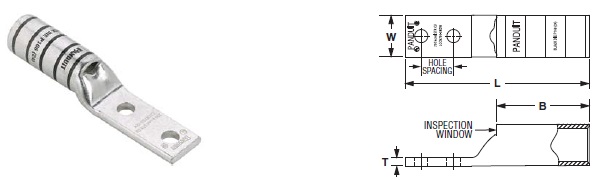

Code Conductor, Two-Hole, Standard Barrel with Window, Narrow Tongue Lug

Type LCDN


Part
Copper Conductor
Size
Stud Hole
Size
(In.)
Stud Hole
Spacing
W B T L
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
LCDN2-10B-Q #2 AWG #10 0.75 0.42 0.88 0.11 2.43 Brown P33 10 33 15/16
LCDN2-14A-Q 1/4 0.63 0.42 0.88 0.12 2.4 Brown P33 10 33 15/16
LCDN2-14B-Q 1/4 0.75 0.42 0.88 0.11 2.52 Brown P33 10 33 15/16
LCDN2-14D-Q 1/4 1 0.42 0.88 0.11 2.77 Brown P33 10 33 15/16
LCDN1-14B-E #1 AWG 1/4 0.75 0.47 0.88 0.11 2.54 Green P37 11 37 15/16
LCDN1/0-14D-X 1/0 AWG 1/4 1 0.52 0.94 0.13 2.95 Pink P42 12 42 1
LCDN1/0-56D-X 5/16 1 0.52 0.94 0.13 3 Pink P42 12 42 1
LCDN2/0-14A-X 2/0 AWG 1/4 0.63 0.58 0.98 0.14 2.71 Black P45 13 45 1  1/16
LCDN2/0-14D-X 1/4 1 0.58 0.98 0.13 3.09 Black P45 13 45 1  1/16
LCDN2/0-56A-X 5/16 0.63 0.58 0.98 0.13 2.71 Black P45 13 45 1  1/16
LCDN2/0-56D-X 5/16 1 0.58 0.98 0.13 3.09 Black P45 13 45 1  1/16
LCDN350-38D-X 3/8 1 0.88 1.44 0.17 3.79 Red P71 18 71 1 1/2
LCDN500-38D-6 500 kcmil 3/8 1 1.06 1.75 0.22 4.2 Brown P87 20 87 1  3/16
LCDN500-12D-6 1/2 1 1.06 1.75 0.22 4.63 Brown P87 20 87 1  3/16
LCDN750-38D-6 750 kcmil 3/8 1 1.3 1.88 0.26 4.72 Black P106 24 106 1  3/16

Code Conductor,Two-Hole, Standard Barrel with Window, Narrow Tongue Lug, 45°

Type LCDN-H

Part
Copper Conductor
Size
Stud Hole
Size
(In.)
Stud Hole
Spacing
W B T L
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
LCDN2-14AH-Q #2 AWG 1/4 0.63 0.42 0.88 0.11 2.12 Brown P33 10 33 15/16
LCDN2-14DH-Q #2 AWG 1/4 1 0.42 0.88 0.11 2.49 Brown P33 10 33 15/16
LCDN1/0-14DH-X 1/0 AWG 1/4 1 0.52 0.94 0.13 2.63 Pink P42 12 42 1
LCDN1/0-56DH-X 1/0 AWG 5/16 1 0.52 0.94 0.13 2.7 Pink P42 12 42 1

Code Conductor,Two-Hole, Standard Barrel with Window, Narrow Tongue Lug, 90°

Type LCDN-F


Part
Copper Conductor
Size
Stud Hole
Size
(In.)
Stud Hole
Spacing
W B T L
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
LCDN2-14AF-Q #2 AWG 1/4 0.63 0.42 0.88 0.11 1.86 Brown P33 10 33 15/16
LCDN2-14DF-Q #2 AWG 1/4 1 0.42 0.88 0.11 2.24 Brown P33 10 33 15/16
LCDN1/0-14DF-X 1/0 AWG 1/4 1 0.52 0.94 0.13 2.45 Pink P42 12 42 1
LCDN1/0-56DF-X 1/0 AWG 5/16 1 0.52 0.94 0.13 2.51 Pink P42 12 42 1

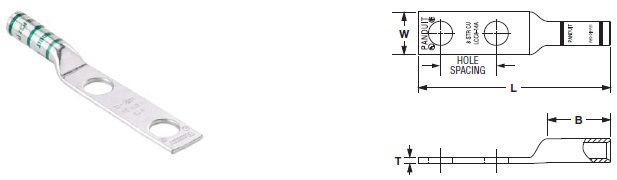

Code Conductor, Two-Hole, Long Barrel Lug

Type LCC


Part
Copper Conductor
Size
Stud Hole
Size
(In.)
Stud Hole
Spacing
W B T L
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
LCC8-10A-L #8 AWG #10 0.63 0.41 0.7 0.08 2.07 Red P21 49 21 3/4
LCC8-14A-L 1/4 0.63 0.48 0.7 0.07 2.16 Red P21 49 21 3/4
LCC8-14B-L 1/4 0.75 0.48 0.7 0.07 2.28 Red P21 49 21 3/4
LCC8-14D-L 1/4 1 0.48 0.7 0.07 2.53 Red P21 49 21 3/4
LCC8-38D-L 3/8 1 0.6 0.7 0.05 2.75 Red P21 49 21 3/4
LCC6-10A-L #6 AWG #10 0.63 0.46 1.07 0.08 2.47 Blue P24 7 24 1 1/8
LCC6-14A-L 1/4 0.63 0.48 1.07 0.08 2.56 Blue P24 7 24 1 1/8
LCC6-14B-L 1/4 0.75 0.48 1.07 0.08 2.68 Blue P24 7 24 1 1/8
LCC6-14D-L 1/4 1 0.48 1.07 0.08 2.93 Blue P24 7 24 1 1/8
LCC6-38D-L 3/8 1 0.62 1.07 0.06 3.15 Blue P24 7 24 1 1/8
LCC6-12-L 1/2 1.75 0.75 1.07 0.07 4.04 Blue P24 7 24 1 1/8
LCC4-14A-L
#4–#3
AWG STR,
#2 AWG SOL
1/4 0.63 0.55 1.05 0.09 2.58 Gray P29 8 29 1 1/8
LCC4-14B-L 1/4 0.75 0.55 1.05 0.09 2.7 Gray P29 8 29 1 1/8
LCC4-38D-L 3/8 1 0.62 1.05 0.08 3.17 Gray P29 8 29 1 1/8
LCC4-12-L 1/2 1.75 0.75 1.05 0.07 4.09 Gray P29 8 29 1 1/8
LCC2-14A-Q #2 AWG 1/4 0.63 0.6 1.16 0.1 2.77 Brown P33 10 33 1 1/4
LCC2-14B-Q 1/4 0.75 0.6 1.16 0.1 2.89 Brown P33 10 33 1 1/4
LCC2-56B-Q 5/16 0.75 0.66 1.16 0.1 3.02 Brown P33 10 33 1 1/4
LCC2-56C-Q 5/16 0.88 0.66 1.16 0.1 3.14 Brown P33 10 33 1 1/4
LCC2-38D-Q 3/8 1 0.66 1.16 0.1 3.34 Brown P33 10 33 1 1/4
LCC2-38-Q 3/8 1.75 0.66 1.16 0.1 4.09 Brown P33 10 33 1 1/4
LCC2-12-Q 1/2 1.75 0.75 1.16 0.08 4.51 Brown P33 10 33 1 1/4
LCC1-14A-E #1 AWG 1/4 0.63 0.7 1.36 0.11 3 Green P37 11 37 1 7/16
LCC1-14B-E 1/4 0.75 0.7 1.36 0.11 3.12 Green P37 11 37 1 7/16
LCC1-56B-E 5/16 0.75 0.7 1.36 0.11 3.25 Green P37 11 37 1 7/16
LCC1-56C-E 5/16 0.88 0.7 1.36 0.11 3.37 Green P37 11 37 1 7/16
LCC1-38D-E 3/8 1 0.7 1.36 0.11 3.57 Green P37 11 37 1 7/16
LCC1-12-E 1/2 1.75 0.75 1.36 0.09 4.74 Green P37 11 37 1 7/16
LCC1/0-14A-X 1/0 AWG 1/4 0.63 0.76 1.44 0.12 3.18 Pink P42 12 42 1 1/2
LCC1/0-14B-X 1/4 0.75 0.76 1.44 0.12 3.31 Pink P42 12 42 1 1/2
LCC1/0-56C-X 5/16 0.88 0.76 1.44 0.12 3.49 Pink P42 12 42 1 1/2
LCC1/0-56D-X 5/16 1 0.76 1.44 0.12 3.61 Pink P42 12 42 1 1/2
LCC1/0-38D-X 3/8 1 0.76 1.44 0.12 3.69 Pink P42 12 42 1 1/2
LCC1/0-12D-X 1/2 1 0.8 1.44 0.12 3.95 Pink P42 12 42 1 1/2
LCC1/0-12-X 1/2 1.75 0.8 1.44 0.12 4.86 Pink P42 12 42 1 1/2
LCC2/0-14A-X 2/0 AWG 1/4 0.63 0.85 1.5 0.13 3.38 Black P45 13 45 1 9/16
LCC2/0-14B-X 1/4 0.75 0.85 1.5 0.13 3.51 Black P45 13 45 1 9/16
LCC2/0-56D-X 5/16 1 0.85 1.5 0.13 3.76 Black P45 13 45 1 9/16
LCC2/0-38D-X 3/8 1 0.85 1.5 0.13 3.82 Black P45 13 45 1 9/16
LCC2/0-12D-X 1/2 1 0.85 1.5 0.13 4.07 Black P45 13 45 1 9/16
LCC2/0-12-X 1/2 1.75 0.85 1.5 0.13 4.98 Black P45 13 45 1 9/16
LCC3/0-14B-X 3/0 AWG 1/4 0.75 0.96 1.5 0.13 3.56 Orange P50 14 50 1 9/16
LCC3/0-38D-X 3/8 1 0.96 1.5 0.13 3.87 Orange P50 14 50 1 9/16
LCC3/0-12D-X 1/2 1 0.96 1.5 0.13 4.12 Orange P50 14 50 1 9/16
LCC3/0-12-X 1/2 1.75 0.96 1.5 0.13 5.03 Orange P50 14 50 1 9/16
LCC4/0-14B-X 4/0 AWG 1/4 0.75 1.06 1.56 0.14 3.66 Purple P54 15 54 1 5/8
LCC4/0-56D-X 5/16 1 1.06 1.56 0.14 3.92 Purple P54 15 54 1 5/8
LCC4/0-38D-X 3/8 1 1.06 1.56 0.14 3.99 Purple P54 15 54 1 5/8
LCC4/0-38-X 3/8 1.75 1.06 1.56 0.14 4.74 Purple P54 15 54 1 5/8
LCC4/0-12D-X 1/2 1 1.06 1.56 0.14 4.22 Purple P54 15 54 1 5/8
LCC4/0-12-X 1/2 1.75 1.06 1.56 0.14 5.13 Purple P54 15 54 1 5/8
LCC250-38D-X 250 kcmil 3/8 1 1.17 1.6 0.14 4.09 Yellow P62 16 62 1 11/16
LCC250-12D-X 1/2 1 1.17 1.6 0.14 4.32 Yellow P62 16 62 1 11/16
LCC250-12-X 1/2 1.75 1.17 1.6 0.14 5.23 Yellow P62 16 62 1 11/16
LCC300-38D-X 300 kcmil 3/8 1 1.19 2.24 0.16 4.76 White P66 17 66 2 5/16
LCC300-12-X 1/2 1.75 1.19 2.24 0.16 5.94 White P66 17 66 2 5/16
LCC350-14B-X 350 kcmil 1/4 0.75 1.28 2.24 0.17 4.33 Red P71 18 71 2 5/16
LCC350-38D-X 3/8 1 1.28 2.24 0.17 4.81 Red P71 18 71 2 5/16
LCC350-12-X 1/2 1.75 1.28 2.24 0.17 5.99 Red P71 18 71 2 5/16
LCC400-14B-6 400 kcmil 1/4 0.75 1.39 2.3 0.18 4.44 Blue P76 19 76 2 3/8
LCC400-38D-6 3/8 1 1.39 2.3 0.18 4.92 Blue P76 19 76 2 3/8
LCC400-12-6 1/2 1.75 1.39 2.3 0.18 6.1 Blue P76 19 76 2 3/8
LCC500-14B-6 500 kcmil 1/4 0.75 1.54 2.5 0.22 4.7 Brown P87 20 87 2 9/16
LCC500-38D-6 3/8 1 1.54 2.5 0.22 5.18 Brown P87 20 87 2 9/16
LCC500-12-6 1/2 1.75 1.54 2.5 0.22 6.36 Brown P87 20 87 2 9/16
LCC600-38D-6 600 kcmil 3/8 1 1.7 2.69 0.26 5.45 Green P94 22 94 2 3/4
LCC600-12-6 1/2 1.75 1.7 2.69 0.26 6.63 Green P94 22 94 2 3/4
LCC750-38D-6 750 kcmil 3/8 1 1.89 2.87 0.26 6.1 Black P106 24 106 2 15/16
LCC750-12-6 1/2 1.75 1.89 2.87 0.26 7.04 Black P106 24 106 2 15/16
LCC800-12-6 800 kcmil 1/2 1.75 1.95 2.94 0.29 7.13 Orange P107 25 3
LCC1000-38D-3 1000 kcmil 3/8 1 2.17 3 0.32 6.35 White P125 27 125 3 1/16
LCC1000-12-3 1/2 1.75 2.17 3 0.32 7.29 White P125 27 125 3 1/16

Code Conductor, Two-Hole, Long Barrel Lug, 45° Angle

Type LCC-H

Part
Copper Conductor
Size
Stud Hole
Size
(In.)
Stud Hole
Spacing
W B T L
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
LCC8-10AH-L #8 AWG #10 0.63 0.41 0.7 0.08 1.86 Red P21 49 21 3/4
LCC8-14AH-L 1/4 0.63 0.48 0.7 0.07 1.94 Red P21 49 21 3/4
LCC8-14BH-L 1/4 0.75 0.48 0.7 0.07 2.06 Red P21 49 21 3/4
LCC8-14DH-L 1/4 1 0.48 0.7 0.07 2.31 Red P21 49 21 3/4
LCC8-38DH-L 3/8 1 0.6 0.7 0.05 2.52 Red P21 49 21 3/4
LCC6-10AH-L #6 AWG #10 0.63 0.46 1.07 0.08 2.14 Blue P24 7 24 1 1/8
LCC6-14AH-L 1/4 0.63 0.48 1.07 0.08 2.23 Blue P24 7 24 1 1/8
LCC6-14BH-L 1/4 0.75 0.48 1.07 0.08 2.35 Blue P24 7 24 1 1/8
LCC6-14DH-L 1/4 1 0.48 1.07 0.08 2.6 Blue P24 7 24 1 1/8
LCC6-38DH-L 3/8 1 0.62 1.07 0.06 2.81 Blue P24 7 24 1 1/8
LCC4-14AH-L
#4–#3
AWG STR,
#2 AWG SOL
1/4 0.63 0.55 1.05 0.09 2.26 Gray P29 8 29 1 1/8
LCC4-14BH-L 1/4 0.75 0.55 1.05 0.09 2.38 Gray P29 8 29 1 1/8
LCC4-38DH-L 3/8 1 0.62 1.05 0.08 2.84 Gray P29 8 29 1 1/8
LCC2-14AH-Q #2 AWG 1/4 0.63 0.6 1.16 0.1 2.38 Brown P33 10 33 1 1/4
LCC2-14BH-Q 1/4 0.75 0.6 1.16 0.1 2.5 Brown P33 10 33 1 1/4
LCC2-56BH-Q 5/16 0.75 0.66 1.16 0.1 2.62 Brown P33 10 33 1 1/4
LCC2-56CH-Q 5/16 0.88 0.66 1.16 0.1 2.75 Brown P33 10 33 1 1/4
LCC2-38DH-Q 3/8 1 0.66 1.16 0.1 2.95 Brown P33 10 33 1 1/4
LCC2-38H-Q 3/8 1.75 0.66 1.16 0.1 3.7 Brown P33 10 33 1 1/4
LCC2-12H-Q 1/2 1.75 0.75 1.16 0.08 4.1 Brown P33 10 33 1 1/4
LCC1-14AH-E #1 AWG 1/4 0.63 0.7 1.36 0.11 2.53 Green P37 11 37 1 7/16
LCC1-14BH-E 1/4 0.75 0.7 1.36 0.11 2.66 Green P37 11 37 1 7/16
LCC1-56BH-E 5/16 0.75 0.7 1.36 0.11 2.78 Green P37 11 37 1 7/16
LCC1-56CH-E 5/16 0.88 0.7 1.36 0.11 2.91 Green P37 11 37 1 7/16
LCC1-38DH-E 3/8 1 0.7 1.36 0.11 3.11 Green P37 11 37 1 7/16
LCC1-12H-E 1/2 1.75 0.75 1.36 0.09 4.27 Green P37 11 37 1 7/16
LCC1/0-14AH-X 1/0 AWG 1/4 0.63 0.76 1.44 0.12 2.69 Pink P42 12 42 1 1/2
LCC1/0-14BH-X 1/4 0.75 0.76 1.44 0.12 2.81 Pink P42 12 42 1 1/2
LCC1/0-56CH-X 5/16 0.88 0.76 1.44 0.12 2.99 Pink P42 12 42 1 1/2
LCC1/0-56DH-X 5/16 1 0.76 1.44 0.12 3.12 Pink P42 12 42 1 1/2
LCC1/0-38DH-X 3/8 1 0.76 1.44 0.12 3.19 Pink P42 12 42 1 1/2
LCC1/0-12DH-X 1/2 1 0.8 1.44 0.12 3.46 Pink P42 12 42 1 1/2
LCC1/0-12H-X 1/2 1.75 0.8 1.44 0.12 4.36 Pink P42 12 42 1 1/2
LCC2/0-14AH-X 2/0 AWG 1/4 0.63 0.85 1.5 0.13 2.87 Black P45 13 45 1 9/16
LCC2/0-14BH-X 1/4 0.75 0.85 1.5 0.13 2.99 Black P45 13 45 1 9/16
LCC2/0-56DH-X 5/16 1 0.85 1.5 0.13 3.24 Black P45 13 45 1 9/16
LCC2/0-38DH-X 3/8 1 0.85 1.5 0.13 3.31 Black P45 13 45 1 9/16
LCC2/0-12DH-X 1/2 1 0.85 1.5 0.13 3.56 Black P45 13 45 1 9/16
LCC2/0-12H-X 1/2 1.75 0.85 1.5 0.13 4.47 Black P45 13 45 1 9/16
LCC3/0-14BH-X 3/0 AWG 1/4 0.75 0.96 1.5 0.13 3.02 Orange P50 14 50 1 9/16
LCC3/0-38DH-X 3/8 1 0.96 1.5 0.13 3.33 Orange P50 14 50 1 9/16
LCC3/0-12DH-X 1/2 1 0.96 1.5 0.13 3.58 Orange P50 14 50 1 9/16
LCC3/0-12H-X 1/2 1.75 0.96 1.5 0.13 4.5 Orange P50 14 50 1 9/16
LCC4/0-14BH-X 4/0 AWG 1/4 0.75 1.06 1.56 0.14 3.11 Purple P54 15 54 1 5/8
LCC4/0-56DH-X 5/16 1 1.06 1.56 0.14 3.37 Purple P54 15 54 1 5/8
LCC4/0-38DH-X 3/8 1 1.06 1.56 0.14 3.44 Purple P54 15 54 1 5/8
LCC4/0-38H-X 3/8 1.75 1.06 1.56 0.14 4.19 Purple P54 15 54 1 5/8
LCC4/0-12DH-X 1/2 1 1.06 1.56 0.14 3.67 Purple P54 15 54 1 5/8
LCC4/0-12H-X 1/2 1.75 1.06 1.56 0.14 4.58 Purple P54 15 54 1 5/8
LCC250-38DH-X 250 kcmil 3/8 1 1.17 1.61 0.14 3.51 Yellow P62 16 62 1 11/16
LCC250-12DH-X 1/2 1 1.17 1.61 0.14 3.74 Yellow P62 16 62 1 11/16
LCC250-12H-X 1/2 1.75 1.17 1.61 0.14 4.65 Yellow P62 16 62 1 11/16
LCC300-38DH-X 300 kcmil 3/8 1 1.19 2.24 0.16 4.05 White P66 17 66 2 5/16
LCC300-12H-X 1/2 1.75 1.19 2.24 0.16 5.23 White P66 17 66 2 5/16
LCC350-14BH-X 350 kcmil 1/4 0.75 1.28 2.24 0.17 3.61 Red P71 18 71 2 5/16
LCC350-38DH-X 3/8 1 1.28 2.24 0.17 4.09 Red P71 18 71 2 5/16
LCC350-12H-X 1/2 1.75 1.28 2.24 0.17 5.27 Red P71 18 71 2 5/16
LCC400-14BH-6 400 kcmil 1/4 0.75 1.39 2.3 0.18 3.7 Blue P76 19 76 2 3/8
LCC400-38DH-6 3/8 1 1.39 2.3 0.18 4.18 Blue P76 19 76 2 3/8
LCC400-12H-6 1/2 1.75 1.39 2.3 0.18 5.36 Blue P76 19 76 2 3/8
LCC500-14BH-6 500 kcmil 1/4 0.75 1.54 2.5 0.22 3.91 Brown P87 20 87 2 9/16
LCC500-38DH-6 3/8 1 1.54 2.5 0.22 4.39 Brown P87 20 87 2 9/16
LCC500-12H-6 1/2 1.75 1.54 2.5 0.22 5.57 Brown P87 20 87 2 9/16
LCC600-38DH-6 600 kcmil 3/8 1 1.7 2.69 0.26 4.61 Green P94 22 94 2 3/4
LCC600-12H-6 1/2 1.75 1.7 2.69 0.26 5.79 Green P94 22 94 2 3/4

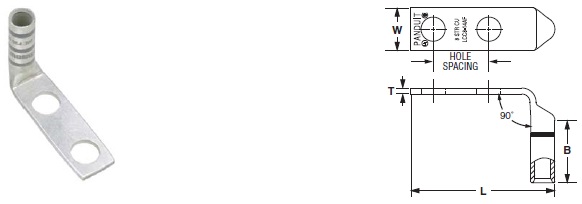

Code Conductor, Two-Hole, Long Barrel Lug, 90° Angle

Type LCC-F

Part
Copper Conductor
Size
Stud Hole
Size
(In.)
Stud Hole
Spacing
W B T L
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
LCC8-10AF-L #8 AWG #10 0.63 0.41 0.7 0.08 1.53 Red P21 49 21 3/4
LCC8-14AF-L 1/4 0.63 0.48 0.7 0.07 1.62 Red P21 49 21 3/4
LCC8-14BF-L 1/4 0.75 0.48 0.7 0.07 1.74 Red P21 49 21 3/4
LCC8-14DF-L 1/4 1 0.48 0.7 0.07 1.99 Red P21 49 21 3/4
LCC8-38DF-L 3/8 1 0.6 0.7 0.05 2.21 Red P21 49 21 3/4
LCC6-10AF-L #6 AWG 1/4 0.63 0.46 1.07 0.08 1.57 Blue P24 7 24 1 1/8
LCC6-14AF-L 1/4 0.63 0.48 1.07 0.08 1.66 Blue P24 7 24 1 1/8
LCC6-14BF-L 1/4 0.75 0.48 1.07 0.08 1.78 Blue P24 7 24 1 1/8
LCC6-14DF-L 1/4 1 0.48 1.07 0.08 2.03 Blue P24 7 24 1 1/8
LCC6-38DF-L 3/8 1 0.62 1.07 0.05 2.25 Blue P24 7 24 1 1/8
LCC4-14AF-L
#4–#3
AWG STR,
#2 AWG SOL
1/4 0.63 0.55 1.05 0.09 1.74 Gray P29 8 29 1 1/8
LCC4-14BF-L 1/4 0.75 0.55 1.05 0.09 1.87 Gray P29 8 29 1 1/8
LCC4-38DF-L 3/8 1 0.62 1.05 0.08 2.34 Gray P29 8 29 1 1/8
LCC2-14AF-Q #2 AWG 1/4 0.63 0.6 1.16 0.1 1.86 Brown P33 10 33 1 1/4
LCC2-14BF-Q 1/4 0.75 0.6 1.16 0.1 1.99 Brown P33 10 33 1 1/4
LCC2-56BF-Q 5/16 0.75 0.66 1.16 0.1 2.11 Brown P33 10 33 1 1/4
LCC2-56CF-Q 5/16 0.88 0.66 1.16 0.1 2.24 Brown P33 10 33 1 1/4
LCC2-38DF-Q 3/8 1 0.66 1.16 0.1 2.44 Brown P33 10 33 1 1/4
LCC2-38F-Q 3/8 1.75 0.66 1.16 0.1 3.19 Brown P33 10 33 1 1/4
LCC2-12F-Q 1/2 1.75 0.75 1.16 0.08 3.61 Brown P33 10 33 1 1/4
LCC1-14AF-E #1 AWG 1/4 0.63 0.7 1.36 0.11 1.94 Green P37 11 37 1 7/16
LCC1-14BF-E 1/4 0.75 0.7 1.36 0.11 2.06 Green P37 11 37 1 7/16
LCC1-56BF-E 5/16 0.75 0.7 1.36 0.11 2.19 Green P37 11 37 1 7/16
LCC1-56CF-E 5/16 0.88 0.7 1.36 0.11 2.31 Green P37 11 37 1 7/16
LCC1-38DF-E 3/8 1 0.7 1.36 0.11 2.51 Green P37 11 37 1 7/16
LCC1-12F-E 1/2 1.75 0.75 1.36 0.09 3.68 Green P37 11 37 1 7/16
LCC1/0-14AF-X 1/0 AWG 1/4 0.63 0.76 1.44 0.12 2.08 Pink P42 12 42 1 1/2
LCC1/0-14BF-X 1/4 0.75 0.76 1.44 0.12 2.2 Pink P42 12 42 1 1/2
LCC1/0-56CF-X 5/16 0.88 0.76 1.44 0.12 2.38 Pink P42 12 42 1 1/2
LCC1/0-56DF-X 5/16 1 0.76 1.44 0.12 2.51 Pink P42 12 42 1 1/2
LCC1/0-38DF-X 3/8 1 0.76 1.44 0.12 2.58 Pink P42 12 42 1 1/2
LCC1/0-12DF-X 1/2 1 0.8 1.44 0.12 2.85 Pink P42 12 42 1 1/2
LCC1/0-12F-X 1/2 1.75 0.8 1.44 0.12 3.75 Pink P42 12 42 1 1/2
LCC2/0-14AF-X 2/0 AWG 1/4 0.63 0.85 1.5 0.13 2.22 Black P45 13 45 1 9/16
LCC2/0-14BF-X 1/4 0.75 0.85 1.5 0.13 2.34 Black P45 13 45 1 9/16
LCC2/0-56DF-X 5/16 1 0.85 1.5 0.13 2.59 Black P45 13 45 1 9/16
LCC2/0-38DF-X 3/8 1 0.85 1.5 0.13 2.66 Black P45 13 45 1 9/16
LCC2/0-12DF-X 1/2 1 0.85 1.5 0.13 2.85 Black P45 13 45 1 9/16
LCC2/0-12F-X 1/2 1.75 0.85 1.5 0.13 3.82 Black P45 13 45 1 9/16
LCC3/0-14BF-X 3/0 AWG 1/4 0.75 0.96 1.5 0.13 2.42 Orange P50 14 50 1 9/16
LCC3/0-38DF-X 3/8 1 0.96 1.5 0.13 2.73 Orange P50 14 50 1 9/16
LCC3/0-12DF-X 1/2 1 0.96 1.5 0.13 2.98 Orange P50 14 50 1 9/16
LCC3/0-12F-X 1/2 1.75 0.96 1.5 0.13 3.89 Orange P50 14 50 1 9/16
LCC4/0-14BF-X 4/0 AWG 1/4 0.75 1.06 1.56 0.14 2.5 Purple P54 15 54 1 5/8
LCC4/0-56DF-X 5/16 1 1.06 1.56 0.14 2.77 Purple P54 15 54 1 5/8
LCC4/0-38DF-X 3/8 1 1.06 1.56 0.14 2.84 Purple P54 15 54 1 5/8
LCC4/0-38F-X 3/8 1.75 1.06 1.56 0.14 3.59 Purple P54 15 54 1 5/8
LCC4/0-12DF-X 1/2 1 1.06 1.56 0.14 3.07 Purple P54 15 54 1 5/8
LCC4/0-12F-X 1/2 1.75 1.06 1.56 0.14 3.98 Purple P54 15 54 1 5/8
LCC250-38DF-X 250 kcmil 3/8 1 1.17 1.61 0.14 2.9 Yellow P62 16 62 1 11/16
LCC250-12DF-X 1/2 1 1.17 1.61 0.14 3.13 Yellow P62 16 62 1 11/16
LCC250-12F-X 1/2 1.75 1.17 1.61 0.14 4.04 Yellow P62 16 62 1 11/16
LCC300-38DF-X 300 kcmil 3/8 1 1.19 2.24 0.16 2.88 White P66 17 66 2 5/16
LCC300-12F-X 1/2 1.75 1.19 2.24 0.16 4.06 White P66 17 66 2 5/16
LCC350-14BF-X 350 kcmil 1/4 0.75 1.28 2.24 0.17 2.46 Red P71 18 71 2 5/16
LCC350-38DF-X 3/8 1 1.28 2.24 0.17 2.94 Red P71 18 71 2 5/16
LCC350-12F-X 1/2 1.75 1.28 2.24 0.17 4.12 Red P71 18 71 2 5/16
LCC400-14BF-6 400 kcmil 1/4 0.75 1.39 2.3 0.18 2.54 Blue P76 19 76 2 3/8
LCC400-38DF-6 3/8 1 1.39 2.3 0.18 3.02 Blue P76 19 76 2 3/8
LCC400-12F-6 1/2 1.75 1.39 2.3 0.18 4.2 Blue P76 19 76 2 3/8
LCC500-14BF-6 500 kcmil 1/4 0.75 1.54 2.5 0.22 2.65 Brown P87 20 87 2 9/16
LCC500-38DF-6 3/8 1 1.54 2.5 0.22 3.13 Brown P87 20 87 2 9/16
LCC500-12F-6 1/2 1.75 1.54 2.5 0.22 4.31 Brown P87 20 87 2 9/16
LCC600-38DF-6 600 kcmil 3/8 1 1.7 2.69 0.26 3.26 Green P94 22 94 2 3/4
LCC600-12F-6 1/2 1.75 1.7 2.69 0.26 4.44 Green P94 22 94 2 3/4

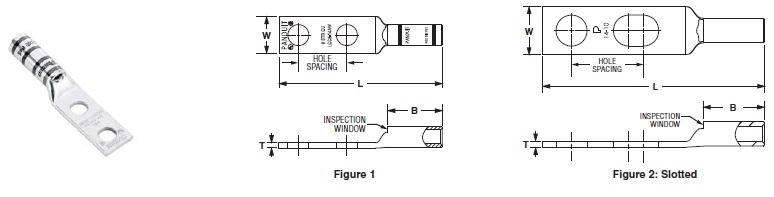

Code Conductor, Two-Hole, Long Barrel with Window Lug

Type LCC-W


Part
Figure
No.
Copper Conductor
Size
Stud Hole
Size
(In.)
Stud Hole
Spacing
W B T L
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
LCC10-14JAW-L* 2
#14-#10
AWG STR,
#12–#10
AWG SOL
1/4 0.50–0.63 0.42 0.53 0.05 1.93 9/16
LCC10-14AW-L* 1 1/4 0.63 0.42 0.53 0.05 1.93 9/16
LCC10-14BW-L* 1 1/4 0.75 0.42 0.53 0.05 2.06 9/16
LCC8-10AW-L 1 #8 AWG #10 0.63 0.41 0.7 0.08 2.01 Red P21 49 21 3/4
LCC8-10BW-L 1 #10 0.75 0.41 0.7 0.08 2.14 Red P21 49 21 3/4
LCC8-10ABW-L 2 #10 0.63–0.75 0.41 0.7 0.08 2.14 Red P21 49 21 3/4
LCC8-14AW-L 1 1/4 0.63 0.48 0.7 0.07 2.1 Red P21 49 21 3/4
LCC8-14BW-L 1 1/4 0.75 0.48 0.7 0.07 2.23 Red P21 49 21 3/4
LCC8-14ABW-L 2 1/4 0.63–0.75 0.48 0.7 0.07 2.23 Red P21 49 21 3/4
LCC8-14DW-L 1 1/4 1 0.48 0.7 0.07 2.48 Red P21 49 21 3/4
LCC8-38DW-L 1 3/8 1 0.6 0.7 0.05 2.7 Red P21 49 21 3/4
LCC6-10AW-L 1 #6 AWG #10 0.63 0.46 1.07 0.08 2.4 Blue P24 7 24 1 1/8
LCC6-10BW-L 1 #10 0.75 0.46 1.07 0.08 2.52 Blue P24 7 24 1 1/8
LCC6-10ABW-L 2 #10 0.63–0.75 0.46 1.07 0.08 2.52 Blue P24 7 24 1 1/8
LCC6-14JW-L 1 1/4 0.5 0.48 1.07 0.08 2.36 Blue P24 7 24 1 1/8
LCC6-14AW-L 1 1/4 0.63 0.48 1.07 0.08 2.49 Blue P24 7 24 1 1/8
LCC6-14JAW-L 2 1/4 0.50–0.63 0.48 1.07 0.08 2.49 Blue P24 7 24 1 1/8
LCC6-14BW-L 1 1/4 0.75 0.48 1.07 0.08 2.61 Blue P24 7 24 1 1/8
LCC6-14DW-L 1 1/4 1 0.48 1.07 0.08 2.86 Blue P24 7 24 1 1/8
LCC6-14BDW-L 2 1/4 0.75–1.00 0.48 1.07 0.08 2.86 Blue P24 7 24 1 1/8
LCC6-14EW-L 1 1/4 1.25 0.48 1.07 0.08 3.11 Blue P24 7 24 1 1/8
LCC6-14W-L 1 1/4 1.75 0.48 1.07 0.08 3.61 Blue P24 7 24 1 1/8
LCC6-56BW-L 1 5/16 0.75 0.56 1.07 0.07 2.73 Blue P24 7 24 1 1/8
LCC6-38BW-L 1 3/8 0.75 0.62 1.07 0.06 2.83 Blue P24 7 24 1 1/8
LCC6-38CW-L 1 3/8 0.88 0.62 1.07 0.06 2.96 Blue P24 7 24 1 1/8
LCC6-38DW-L 1 3/8 1 0.62 1.07 0.06 3.08 Blue P24 7 24 1 1/8
LCC6-38BDW-L 2 3/8 0.75–1.00 0.62 1.07 0.06 3.08 Blue P24 7 24 1 1/8
LCC6-12W-L 1 1/2 1.75 0.75 1.07 0.07 3.97 Blue P24 7 24 1 1/8
LCC4-10AW-L 1

#4–#3

AWG STR

#2 AWG SOL

#10 0.63 0.55 1.05 0.09 2.4 Gray P29 8 29 1 1/8
LCC4-10BW-L 1 #10 0.75 0.55 1.05 0.09 2.53 Gray P29 8 29 1 1/8
LCC4-14AW-L 1 1/4 0.63 0.55 1.05 0.09 2.5 Gray P29 8 29 1 1/8
LCC4-14BW-L 1 1/4 0.75 0.55 1.05 0.09 2.63 Gray P29 8 29 1 1/8
LCC4-14DW-L 1 1/4 1 0.55 1.05 0.09 2.63 Gray P29 8 29 1 1/8
LCC4-14ADW-L 2 1/4 0.63–1.00 0.55 1.05 0.09 2.87 Gray P29 8 29 1 1/8
LCC4-38DW-L 1 3/8 1 0.62 1.05 0.08 3.09 Gray P29 8 29 1 1/8
LCC4-12W-L 1 1/2 1.75 0.75 1.05 0.07 4.01 Gray P29 8 29 1 1/8
LCC2-10AW-Q 1 #2 AWG #10 0.63 0.6 1.16 0.1 2.57 Brown P33 10 33 1 1/4
LCC2-10BW-Q 1 #10 0.75 0.6 1.16 0.1 2.69 Brown P33 10 33 1 1/4
LCC2-14AW-Q 1 1/4 0.63 0.6 1.16 0.1 2.67 Brown P33 10 33 1 1/4
LCC2-14BW-Q 1 1/4 0.75 0.6 1.16 0.1 2.79 Brown P33 10 33 1 1/4
LCC2-14DW-Q 1 1/4 1 0.6 1.16 0.1 3.04 Brown P33 10 33 1 1/4
LCC2-56BW-Q 1 5/16 0.75 0.66 1.16 0.1 2.92 Brown P33 10 33 1 1/4
LCC2-56CW-Q 1 5/16 0.88 0.66 1.16 0.1 3.04 Brown P33 10 33 1 1/4
LCC2-38BW-Q 1 3/8 0.75 0.66 1.16 0.1 2.99 Brown P33 10 33 1 1/4
LCC2-38CW-Q 1 3/8 0.88 0.66 1.16 0.1 3.12 Brown P33 10 33 1 1/4
LCC2-38DW-Q 1 3/8 1 0.66 1.16 0.1 3.24 Brown P33 10 33 1 1/4
LCC2-38W-Q 1 3/8 1.75 0.66 1.16 0.1 3.99 Brown P33 10 33 1 1/4
LCC2-12W-Q 1 1/2 1.75 0.75 1.16 0.08 4.41 Brown P33 10 33 1 1/4
LCC1-14AW-E 1 #1 AWG 1/4 0.63 0.7 1.36 0.11 2.89 Green P37 11 37 1 7/16
LCC1-14BW-E 1 1/4 0.75 0.7 1.36 0.11 3.01 Green P37 11 37 1 7/16
LCC1-56BW-E 1 5/16 0.75 0.7 1.36 0.11 3.14 Green P37 11 37 1 7/16
LCC1-56CW-E 1 5/16 0.88 0.7 1.36 0.11 3.26 Green P37 11 37 1 7/16
LCC1-38DW-E 1 3/8 1 0.7 1.36 0.11 3.46 Green P37 11 37 1 7/16
LCC1-12W-E 1 1/2 1.75 0.75 1.36 0.09 4.63 Green P37 11 37 1 7/16
LCC1/0-14AW-X 1 1/0 AWG 1/4 0.63 0.76 1.44 0.12 3.07 Pink P42 12 42 1 1/2
LCC1/0-14BW-X 1 1/4 0.75 0.76 1.44 0.12 3.19 Pink P42 12 42 1 1/2
LCC1/0-14DW-X 1 1/4 1 0.76 1.44 0.12 3.44 Pink P42 12 42 1 1/2
LCC1/0-38DW-X 1 3/8 1 0.76 1.44 0.12 3.57 Pink P42 12 42 1 1/2
LCC1/0-38W-X 1 3/8 1.75 0.76 1.44 0.12 4.32 Pink P42 12 42 1 1/2
LCC1/0-12DW-X 1 1/2 1 0.8 1.44 0.12 3.84 Pink P42 12 42 1 1/2
LCC1/0-12W-X 1 1/2 1.75 0.8 1.44 0.12 4.74 Pink P42 12 42 1 1/2
LCC2/0-14AW-X 1 2/0 AWG 1/4 0.63 0.85 1.5 0.13 3.23 Black P45 13 45 1 9/16
LCC2/0-14BW-X 1 1/4 0.75 0.85 1.5 0.13 3.36 Black P45 13 45 1 9/16
LCC2/0-56DW-X 1 5/16 1 0.85 1.5 0.13 3.61 Black P45 13 45 1 9/16
LCC2/0-38DW-X 1 3/8 1 0.85 1.5 0.13 3.67 Black P45 13 45 1 9/16
LCC2/0-12DW-X 1 1/2 1 0.85 1.5 0.13 3.92 Black P45 13 45 1 9/16
LCC2/0-12W-X 1 1/2 1.75 0.85 1.5 0.13 4.83 Black P45 13 45 1 9/16
LCC3/0-14BW-X 1 3/0 AWG 1/4 0.75 0.96 1.5 0.13 3.39 Orange P50 14 50 1 9/16
LCC3/0-56DW-X 1 5/16 1 0.96 1.5 0.13 3.64 Orange P50 14 50 1 9/16
LCC3/0-38DW-X 1 3/8 1 0.96 1.5 0.13 3.7 Orange P50 14 50 1 9/16
LCC3/0-12DW-X 1 1/2 1 0.96 1.5 0.13 3.95 Orange P50 14 50 1 9/16
LCC3/0-12W-X 1 1/2 1.75 0.96 1.5 0.13 4.87 Orange P50 14 50 1 9/16
LCC4/0-14AW-X 1 4/0 AWG 1/4 0.63 1.06 1.56 0.14 3.35 Purple P54 15 54 1 5/8
LCC4/0-14BW-X 1 1/4 0.75 1.06 1.56 0.14 3.48 Purple P54 15 54 1 5/8
LCC4/0-56DW-X 1 5/16 1 1.06 1.56 0.14 3.74 Purple P54 15 54 1 5/8
LCC4/0-38DW-X 1 3/8 1 1.06 1.56 0.14 3.81 Purple P54 15 54 1 5/8
LCC4/0-38W-X 1 3/8 1.75 1.06 1.56 0.14 4.56 Purple P54 15 54 1 5/8
LCC4/0-12DW-X 1 1/2 1 1.06 1.56 0.14 4.04 Purple P54 15 54 1 5/8
LCC4/0-12W-X 1 1/2 1.75 1.06 1.56 0.14 4.95 Purple P54 15 54 1 5/8
LCC250-56DW-X 1 250 kcmil 5/16 1 1.17 1.61 0.14 3.82 Yellow P62 16 62 1 11/16
LCC250-38DW-X 1 3/8 1 1.17 1.61 0.14 3.89 Yellow P62 16 62 1 11/16
LCC250-12DW-X 1 1/2 1 1.17 1.61 0.14 4.12 Yellow P62 16 62 1 11/16
LCC250-12W-X 1 1/2 1.75 1.17 1.61 0.14 5.03 Yellow P62 16 62 1 11/16
LCC300-38DW-X 1 300 kcmil 3/8 1 1.19 2.24 0.16 4.54 White P66 17 66 2 5/16
LCC300-12W-X 1 1/2 1.75 1.19 2.24 0.16 5.72 White P66 17 66 2 5/16
LCC350-14BW-X 1 350 kcmil 1/4 0.75 1.28 2.24 0.17 4.1 Red P71 18 71 2 5/16
LCC350-38DW-X 1 3/8 1 1.28 2.24 0.17 4.58 Red P71 18 71 2 5/16
LCC350-12W-X 1 1/2 1.75 1.28 2.24 0.17 5.76 Red P71 18 71 2 5/16
LCC400-14BW-6 1 400 kcmil 1/4 0.75 1.39 2.3 0.18 4.18 Blue P76 19 76 2 3/8
LCC400-38DW-6 1 3/8 1 1.39 2.3 0.18 4.66 Blue P76 19 76 2 3/8
LCC400-12W-6 1 1/2 1.75 1.28 2.3 0.17 5.84 Blue P76 19 76 2 3/8
LCC500-14BW-6 1 500 kcmil 1/4 0.75 1.54 2.5 0.22 4.46 Brown P87 20 87 2 9/16
LCC500-38DW-6 1 3/8 1 1.54 2.5 0.22 4.94 Brown P87 20 87 2 9/16
LCC500-12W-6 1 1/2 1.75 1.54 2.5 0.22 6.12 Brown P87 20 87 2 9/16
LCC600-38DW-6 1 600 kcmil 3/8 1 1.7 2.69 0.26 5.18 Green P94 22 94 2 3/4
LCC600-12W-6 1 1/2 1.75 1.7 2.69 0.26 6.36 Green P94 22 94 2 3/4
LCC750-38DW-6 1 750 kcmil 3/8 1 1.89 2.88 0.26 5.71 Black P106 24 106 2 15/16
LCC750-12W-6 1 1/2 1.75 1.89 2.88 0.26 6.65 Black P106 24 106 2 15/16
LCC800-12W-6 1 800 kcmil 1/2 1.75 1.95 2.94 0.3 6.74 Orange P107 25 107 3
LCC1000-38DW-3 1 1000 kcmil 3/8 1 2.17 3 0.32 5.95 White P125 27 125 3 1/16
LCC1000-12W-3 1 1/2 1.75 2.17 3 0.32 6.89 White P125 27 125 3 1/16

Code Conductor, Two-Hole, Long Barrel with Window Lug, 45° Angle

Type LCC-WH


Part
Figure
No.
Copper Conductor
Size
Stud Hole
Size
(In.)
Stud Hole
Spacing
W B T L
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
LCC10-14JAWH-L* 2
#14-#10
AWG STR,
#12–#10
AWG SOL
1/4 0.50–0.63 0.42 0.53 0.05 1.78 9/16
LCC10-14AWH-L* 1 1/4 0.63 0.42 0.53 0.05 1.78 9/16
LCC10-14BWH-L* 1 1/4 0.75 0.42 0.53 0.05 1.9 9/16
LCC8-10AWH-L 1 #8 AWG #10 0.63 0.41 0.7 0.08 1.82 Red P21 49 21 3/4
LCC8-10BWH-L 1 #10 0.75 0.41 0.7 0.08 1.95 Red P21 49 21 3/4
LCC8-14AWH-L 2 1/4 0.63 0.48 0.7 0.07 1.91 Red P21 49 21 3/4
LCC8-14BWH-L 1 1/4 0.75 0.48 0.7 0.07 2.03 Red P21 49 21 3/4
LCC8-14DWH-L 1 1/4 1 0.48 0.7 0.07 2.28 Red P21 49 21 3/4
LCC8-38DWH-L 1 3/8 1 0.6 0.7 0.05 2.49 Red P21 49 21 3/4
LCC6-10AWH-L 1 #6 AWG #10 0.63 0.46 1.07 0.08 2.09 Blue P24 7 24 1 1/8
LCC6-10BWH-L 1 #10 0.75 0.46 1.07 0.08 2.22 Blue P24 7 24 1 1/8
LCC6-14JWH-L 1 1/4 0.5 0.48 1.07 0.08 2.06 Blue P24 7 24 1 1/8
LCC6-14AWH-L 1 1/4 0.63 0.48 1.07 0.08 2.18 Blue P24 7 24 1 1/8
LCC6-14JAWH-L 2 1/4 0.50–0.63 0.48 1.07 0.08 2.08 Blue P24 7 24 1 1/8
LCC6-14BWH-L 1 1/4 0.75 0.48 1.07 0.08 2.31 Blue P24 7 24 1 1/8
LCC6-14DWH-L 1 1/4 1 0.48 1.07 0.08 2.56 Blue P24 7 24 1 1/8
LCC6-14EWH-L 1 1/4 1.25 0.48 1.07 0.08 2.81 Blue P24 7 24 1 1/8
LCC6-56BWH-L 1 5/16 0.75 0.56 1.07 0.07 2.42 Blue P24 7 24 1 1/8
LCC6-38BWH-L 1 3/8 0.75 0.62 1.07 0.06 2.52 Blue P24 7 24 1 1/8
LCC6-38CWH-L 1 3/8 0.88 0.62 1.07 0.06 2.64 Blue P24 7 24 1 1/8
LCC6-38DWH-L 1 3/8 1 0.62 1.07 0.06 2.77 Blue P24 7 24 1 1/8
LCC4-10AWH-L 1

#4–#3

AWG STR

#2 AWG SOL

#10 0.63 0.55 1.05 0.09 2.11 Gray P29 8 29 1 1/8
LCC4-10BWH-L 1 #10 0.75 0.55 1.05 0.09 2.23 Gray P29 8 29 1 1/8
LCC4-14AWH-L 1 1/4 0.63 0.55 1.05 0.09 2.2 Gray P29 8 29 1 1/8
LCC4-14BWH-L 1 1/4 0.75 0.55 1.05 0.09 2.32 Gray P29 8 29 1 1/8
LCC4-38DWH-L 1 3/8 1 0.62 1.05 0.08 2.79 Gray P29 8 29 1 1/8
LCC2-10AWH-Q 1 #2 AWG #10 0.63 0.6 1.16 0.1 2.21 Brown P33 10 33 1 1/4
LCC2-10BWH-Q 1 #10 0.75 0.6 1.16 0.1 2.33 Brown P33 10 33 1 1/4
LCC2-14AWH-Q 1 1/4 0.63 0.6 1.16 0.1 2.31 Brown P33 10 33 1 1/4
LCC2-14BWH-Q 1 1/4 0.75 0.6 1.16 0.1 2.43 Brown P33 10 33 1 1/4
LCC2-14DWH-Q 1 1/4 1 0.6 1.16 0.1 2.68 Brown P33 10 33 1 1/4
LCC2-56BWH-Q 1 5/16 0.75 0.66 1.16 0.1 2.55 Brown P33 10 33 1 1/4
LCC2-56CWH-Q 1 5/16 0.88 0.66 1.16 0.1 2.68 Brown P33 10 33 1 1/4
LCC2-38BWH-Q 1 3/8 0.75 0.66 1.16 0.1 2.63 Brown P33 10 33 1 1/4
LCC2-38CWH-Q 1 3/8 0.88 0.66 1.16 0.1 2.75 Brown P33 10 33 1 1/4
LCC2-38DWH-Q 1 3/8 1 0.66 1.16 0.1 2.88 Brown P33 10 33 1 1/4
LCC2-38WH-Q 1 3/8 1.75 0.66 1.16 0.1 3.63 Brown P33 10 33 1 1/4
LCC2-12WH-Q 1 1/2 1.75 0.75 1.16 0.08 4.03 Brown P33 10 33 1 1/4
LCC1-14AWH-E 1 #1 AWG 1/4 0.63 0.7 1.36 0.11 2.46 Green P37 11 37 1 7/16
LCC1-14BWH-E 1 1/4 0.75 0.7 1.36 0.11 2.58 Green P37 11 37 1 7/16
LCC1-56BWH-E 1 5/16 0.75 0.7 1.36 0.11 2.71 Green P37 11 37 1 7/16
LCC1-56CWH-E 1 5/16 0.88 0.7 1.36 0.11 2.83 Green P37 11 37 1 7/16
LCC1-38DWH-E 1 3/8 1 0.7 1.36 0.11 3.04 Green P37 11 37 1 7/16
LCC1-12WH-E 1 1/2 1.75 0.75 1.36 0.09 4.2 Green P37 11 37 1 7/16
LCC1/0-14AWH-X 1 1/0 AWG 1/4 0.63 0.76 1.44 0.12 2.61 Pink P42 12 42 1 1/2
LCC1/0-14BWH-X 1 1/4 0.75 0.76 1.44 0.12 2.73 Pink P42 12 42 1 1/2
LCC1/0-14DWH-X 1 1/4 1 0.76 1.44 0.12 2.98 Pink P42 12 42 1 1/2
LCC1/0-38DWH-X 1 3/8 1 0.76 1.44 0.12 3.11 Pink P42 12 42 1 1/2
LCC1/0-38WH-X 1 3/8 1.75 0.76 1.44 0.12 3.86 Pink P42 12 42 1 1/2
LCC1/0-12DWH-X 1 1/2 1 0.8 1.44 0.12 3.37 Pink P42 12 42 1 1/2
LCC1/0-12WH-X 1 1/2 1.75 0.8 1.44 0.12 4.28 Pink P42 12 42 1 1/2
LCC2/0-14AWH-X 1 2/0 AWG 1/4 0.63 0.85 1.5 0.13 2.76 Black P45 13 45 1 9/16
LCC2/0-14BWH-X 1 1/4 0.75 0.85 1.5 0.13 2.88 Black P45 13 45 1 9/16
LCC2/0-56DWH-X 1 5/16 1 0.85 1.5 0.13 3.13 Black P45 13 45 1 9/16
LCC2/0-38DWH-X 1 3/8 1 0.85 1.5 0.13 3.2 Black P45 13 45 1 9/16
LCC2/0-12DWH-X 1 1/2 1 0.85 1.5 0.13 3.45 Black P45 13 45 1 9/16
LCC2/0-12WH-X 1 1/2 1.75 0.85 1.5 0.13 4.36 Black P45 13 45 1 9/16
LCC3/0-14BWH-X 1 3/0 AWG 1/4 0.75 0.96 1.5 0.13 2.91 Orange P50 14 50 1 9/16
LCC3/0-56DWH-X 1 5/16 1 0.96 1.5 0.13 3.16 Orange P50 14 50 1 9/16
LCC3/0-38DWH-X 1 3/8 1 0.96 1.5 0.13 3.22 Orange P50 14 50 1 9/16
LCC3/0-12DWH-X 1 1/2 1 0.96 1.5 0.13 3.47 Orange P50 14 50 1 9/16
LCC3/0-12WH-X 1 1/2 1.75 0.96 1.5 0.13 4.38 Orange P50 14 50 1 9/16
LCC4/0-14AWH-X 1 4/0 AWG 1/4 0.63 1.06 1.56 0.14 2.85 Purple P54 15 54 1 5/8
LCC4/0-14BWH-X 1 1/4 0.75 1.06 1.56 0.14 2.98 Purple P54 15 54 1 5/8
LCC4/0-56DWH-X 1 5/16 1 1.06 1.56 0.14 3.24 Purple P54 15 54 1 5/8
LCC4/0-38DWH-X 1 3/8 1 1.06 1.56 0.14 3.31 Purple P54 15 54 1 5/8
LCC4/0-38WH-X 1 3/8 1.75 1.06 1.56 0.14 4.06 Purple P54 15 54 1 5/8
LCC4/0-12DWH-X 1 1/2 1 1.06 1.56 0.14 3.54 Purple P54 15 54 1 5/8
LCC4/0-12WH-X 1 1/2 1.75 1.06 1.56 0.14 4.45 Purple P54 15 54 1 5/8
LCC250-56DWH-X 1 250 kcmil 5/16 1 1.17 1.61 0.14 3.31 Yellow P62 16 62 1 11/16
LCC250-38DWH-X 1 3/8 1 1.17 1.61 0.14 3.38 Yellow P62 16 62 1 11/16
LCC250-12DWH-X 1 1/2 1 1.17 1.61 0.14 3.61 Yellow P62 16 62 1 11/16
LCC250-12WH-X 1 1/2 1.75 1.17 1.61 0.14 4.52 Yellow P62 16 62 1 11/16
LCC300-38DWH-X 1 300 kcmil 3/8 1 1.19 2.24 0.16 3.93 White P66 17 66 2 5/16
LCC300-12WH-X 1 1/2 1.75 1.19 2.24 0.16 5.11 White P66 17 66 2 5/16
LCC350-14BWH-X 1 350 kcmil 1/4 0.75 1.28 2.24 0.17 3.48 Red P71 18 71 2 5/16
LCC350-38DWH-X 1 3/8 1 1.28 2.24 0.17 3.96 Red P71 18 71 2 5/16
LCC350-12WH-X 1 1/2 1.75 1.28 2.24 0.17 5.14 Red P71 18 71 2 5/16
LCC400-14BWH-6 1 400 kcmil 1/4 0.75 1.39 2.3 0.18 3.59 Blue P76 19 76 2 3/8
LCC400-38DWH-6 1 3/8 1 1.39 2.3 0.18 4.07 Blue P76 19 76 2 3/8
LCC400-12WH-6 1 1/2 1.75 1.28 2.3 0.17 5.24 Blue P76 19 76 2 3/8
LCC500-14BWH-6 1 500 kcmil 1/4 0.75 1.54 2.5 0.22 3.8 Brown P87 20 87 2 9/16
LCC500-38DWH-6 1 3/8 1 1.54 2.5 0.22 4.29 Brown P87 20 87 2 9/16
LCC500-12WH-6 1 1/2 1.75 1.54 2.5 0.22 5.46 Brown P87 20 87 2 9/16
LCC600-38DWH-6 1 600 kcmil 3/8 1 1.7 2.69 0.26 4.47 Green P94 22 94 2 3/4
LCC600-12WH-6 1 1/2 1.75 1.7 2.69 0.26 5.65 Green P94 22 94 2 3/4

Code Conductor, Two-Hole, Long Barrel with Window Lug, 90° Angle

Type LCC-WF


Part
Figure
No.
Copper Conductor
Size
Stud Hole
Size
(In.)
Stud Hole
Spacing
W B T L
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
LCC10-14JAWF-L* 2
#14-#10
AWG STR,
#12–#10
AWG SOL
1/4 0.50–0.63 0.42 0.53 0.05 1.56 9/16
LCC10-14AWF-L* 1 1/4 0.63 0.42 0.53 0.05 1.56 9/16
LCC10-14BWF-L* 1 1/4 0.75 0.42 0.53 0.05 1.69 9/16
LCC8-10AWF-L 1 #8 AWG #10 0.63 0.41 0.7 0.08 1.53 Red P21 49 21 3/4
LCC8-10BWF-L 1 #10 0.75 0.41 0.7 0.08 1.65 Red P21 49 21 3/4
LCC8-14AWF-L 1 1/4 0.63 0.48 0.7 0.07 1.61 Red P21 49 21 3/4
LCC8-14BWF-L 1 1/4 0.75 0.48 0.7 0.07 1.74 Red P21 49 21 3/4
LCC8-14DWF-L 1 1/4 1 0.48 0.7 0.07 1.99 Red P21 49 21 3/4
LCC8-38DWF-L 1 3/8 1 0.6 0.7 0.05 2.21 Red P21 49 21 3/4
LCC6-10AWF-L 1 #6 AWG #10 0.63 0.46 1.07 0.08 1.57 Blue P24 7 24 1 1/8
LCC6-10BWF-L 1 #10 0.75 0.46 1.07 0.08 1.69 Blue P24 7 24 1 1/8
LCC6-14JWF-L 1 1/4 0.5 0.48 1.07 0.08 1.53 Blue P24 7 24 1 1/8
LCC6-14AWF-L 1 1/4 0.63 0.48 1.07 0.08 1.66 Blue P24 7 24 1 1/8
LCC6-14JAWF-L 2 1/4 0.50–0.63 0.48 1.07 0.08 1.66 Blue P24 7 24 1 1/8
LCC6-14BWF-L 1 1/4 0.75 0.48 1.07 0.08 1.78 Blue P24 7 24 1 1/8
LCC6-14DWF-L 1 1/4 1 0.48 1.07 0.08 2.03 Blue P24 7 24 1 1/8
LCC6-14EWF-L 1 1/4 1.25 0.48 1.07 0.08 2.28 Blue P24 7 24 1 1/8
LCC6-56BWF-L 1 5/16 0.75 0.56 1.07 0.07 1.9 Blue P24 7 24 1 1/8
LCC6-38BWF-L 1 3/8 0.75 0.62 1.07 0.06 2 Blue P24 7 24 1 1/8
LCC6-38CWF-L 1 3/8 0.88 0.62 1.07 0.06 2.13 Blue P24 7 24 1 1/8
LCC6-38DWF-L 1 3/8 1 0.62 1.07 0.06 2.25 Blue P24 7 24 1 1/8
LCC4-10AWF-L 1

#4–#3

AWG STR

#2 AWG SOL

#10 0.63 0.55 1.05 0.09 1.65 Gray P29 8 29 1 1/8
LCC4-10BWF-L 1 #10 0.75 0.55 1.05 0.09 1.78 Gray P29 8 29 1 1/8
LCC4-14AWF-L 1 1/4 0.63 0.55 1.05 0.09 1.74 Gray P29 8 29 1 1/8
LCC4-14BWF-L 1 1/4 0.75 0.55 1.05 0.09 1.87 Gray P29 8 29 1 1/8
LCC4-38DWF-L 1 3/8 1 0.62 1.05 0.08 2.34 Gray P29 8 29 1 1/8
LCC2-10AWF-Q 1 #2 AWG #10 0.63 0.6 1.16 0.1 1.76 Brown P33 10 33 1 1/4
LCC2-10BWF-Q 1 #10 0.75 0.6 1.16 0.1 1.89 Brown P33 10 33 1 1/4
LCC2-14AWF-Q 1 1/4 0.63 0.6 1.16 0.1 1.86 Brown P33 10 33 1 1/4
LCC2-14BWF-Q 1 1/4 0.75 0.6 1.16 0.1 1.99 Brown P33 10 33 1 1/4
LCC2-14DWF-Q 1 1/4 1 0.6 1.16 0.1 2.24 Brown P33 10 33 1 1/4
LCC2-56BWF-Q 1 5/16 0.75 0.66 1.16 0.1 2.11 Brown P33 10 33 1 1/4
LCC2-56CWF-Q 1 5/16 0.88 0.66 1.16 0.1 2.24 Brown P33 10 33 1 1/4
LCC2-38BWF-Q 1 3/8 0.75 0.66 1.16 0.1 2.19 Brown P33 10 33 1 1/4
LCC2-38CWF-Q 1 3/8 0.88 0.66 1.16 0.1 2.31 Brown P33 10 33 1 1/4
LCC2-38DWF-Q 1 3/8 1 0.66 1.16 0.1 2.44 Brown P33 10 33 1 1/4
LCC2-38WF-Q 1 3/8 1.75 0.66 1.16 0.1 3.19 Brown P33 10 33 1 1/4
LCC2-12WF-Q 1 1/2 1.75 0.75 1.16 0.08 3.61 Brown P33 10 33 1 1/4
LCC1-14AWF-E 1 #1 AWG 1/4 0.63 0.7 1.36 0.11 1.94 Green P37 11 37 1 7/16
LCC1-14BWF-E 1 1/4 0.75 0.7 1.36 0.11 2.06 Green P37 11 37 1 7/16
LCC1-56BWF-E 1 5/16 0.75 0.7 1.36 0.11 2.19 Green P37 11 37 1 7/16
LCC1-56CWF-E 1 5/16 0.88 0.7 1.36 0.11 2.31 Green P37 11 37 1 7/16
LCC1-38DWF-E 1 3/8 1 0.7 1.36 0.11 2.51 Green P37 11 37 1 7/16
LCC1-12WF-E 1 1/2 1.75 0.75 1.36 0.09 3.68 Green P37 11 37 1 7/16
LCC1/0-14AWF-X 1 1/0 AWG 1/4 0.63 0.76 1.44 0.12 2.08 Pink P42 12 42 1 1/2
LCC1/0-14BWF-X 1 1/4 0.75 0.76 1.44 0.12 2.2 Pink P42 12 42 1 1/2
LCC1/0-14DWF-X 1 1/4 1 0.76 1.44 0.12 2.45 Pink P42 12 42 1 1/2
LCC1/0-38DWF-X 1 3/8 1 0.76 1.44 0.12 2.58 Pink P42 12 42 1 1/2
LCC1/0-38WF-X 1 3/8 1.75 0.76 1.44 0.12 3.33 Pink P42 12 42 1 1/2
LCC1/0-12DWF-X 1 1/2 1 0.8 1.44 0.12 2.85 Pink P42 12 42 1 1/2
LCC1/0-12WF-X 1 1/2 1.75 0.8 1.44 0.12 3.75 Pink P42 12 42 1 1/2
LCC2/0-14AWF-X 1 2/0 AWG 1/4 0.63 0.85 1.5 0.13 2.22 Black P45 13 45 1 9/16
LCC2/0-14BWF-X 1 1/4 0.75 0.85 1.5 0.13 2.34 Black P45 13 45 1 9/16
LCC2/0-56DWF-X 1 5/16 1 0.85 1.5 0.13 2.59 Black P45 13 45 1 9/16
LCC2/0-38DWF-X 1 3/8 1 0.85 1.5 0.13 2.66 Black P45 13 45 1 9/16
LCC2/0-12DWF-X 1 1/2 1 0.85 1.5 0.13 2.91 Black P45 13 45 1 9/16
LCC2/0-12WF-X 1 1/2 1.75 0.85 1.5 0.13 3.82 Black P45 13 45 1 9/16
LCC3/0-14BWF-X 1 3/0 AWG 1/4 0.75 0.96 1.5 0.13 2.42 Orange P50 14 50 1 9/16
LCC3/0-56DWF-X 1 5/16 1 0.96 1.5 0.13 2.67 Orange P50 14 50 1 9/16
LCC3/0-38DWF-X 1 3/8 1 0.96 1.5 0.13 2.73 Orange P50 14 50 1 9/16
LCC3/0-12DWF-X 1 1/2 1 0.96 1.5 0.13 2.98 Orange P50 14 50 1 9/16
LCC3/0-12WF-X 1 1/2 1.75 0.96 1.5 0.13 3.89 Orange P50 14 50 1 9/16
LCC4/0-14AWF-X 1 4/0 AWG 1/4 0.63 1.06 1.56 0.14 2.38 Purple P54 15 54 1 5/8
LCC4/0-14BWF-X 1 1/4 0.75 1.06 1.56 0.14 2.5 Purple P54 15 54 1 5/8
LCC4/0-56DWF-X 1 5/16 1 1.06 1.56 0.14 2.77 Purple P54 15 54 1 5/8
LCC4/0-38DWF-X 1 3/8 1 1.06 1.56 0.14 2.84 Purple P54 15 54 1 5/8
LCC4/0-38WF-X 1 3/8 1.75 1.06 1.56 0.14 3.59 Purple P54 15 54 1 5/8
LCC4/0-12DWF-X 1 1/2 1 1.06 1.56 0.14 3.07 Purple P54 15 54 1 5/8
LCC4/0-12WF-X 1 1/2 1.75 1.06 1.56 0.14 3.98 Purple P54 15 54 1 5/8
LCC250-56DWF-X 1 250 kcmil 5/16 1 1.17 1.61 0.14 2.83 Yellow P62 16 62 1 11/16
LCC250-38DWF-X 1 3/8 1 1.17 1.61 0.14 2.9 Yellow P62 16 62 1 11/16
LCC250-12DWF-X 1 1/2 1 1.17 1.61 0.14 3.13 Yellow P62 16 62 1 11/16
LCC250-12WF-X 1 1/2 1.75 1.17 1.61 0.14 4.04 Yellow P62 16 62 1 11/16
LCC300-38DWF-X 1 300 kcmil 3/8 1 1.19 2.24 0.16 2.88 White P66 17 66 2 5/16
LCC300-12WF-X 1 1/2 1.75 1.19 2.24 0.16 4.06 White P66 17 66 2 5/16
LCC350-14BWF-X 1 350 kcmil 1/4 0.75 1.28 2.24 0.17 2.46 Red P71 18 71 2 5/16
LCC350-38DWF-X 1 3/8 1 1.28 2.24 0.17 2.94 Red P71 18 71 2 5/16
LCC350-12WF-X 1 1/2 1.75 1.28 2.24 0.17 4.12 Red P71 18 71 2 5/16
LCC400-14BWF-6 1 400 kcmil 1/4 0.75 1.39 2.3 0.18 2.54 Blue P76 19 76 2 3/8
LCC400-38DWF-6 1 3/8 1 1.39 2.3 0.18 3.02 Blue P76 19 76 2 3/8
LCC400-12WF-6 1 1/2 1.75 1.39 2.3 0.18 4.2 Blue P76 19 76 2 3/8
LCC500-14BWF-6 1 500 kcmil 1/4 0.75 1.54 2.5 0.22 2.65 Brown P87 20 87 2 9/16
LCC500-38DWF-6 1 3/8 1 1.54 2.5 0.22 3.13 Brown P87 20 87 2 9/16
LCC500-12WF-6 1 1/2 1.75 1.54 2.5 0.22 4.31 Brown P87 20 87 2 9/16
LCC600-38DWF-6 1 600 kcmil 3/8 1 1.7 2.69 0.26 3.26 Green P94 22 94 2 3/4
LCC600-12WF-6 1 1/2 1.75 1.7 2.69 0.26 4.44 Green P94 22 94 2 3/4

Code Conductor, Two-Hole, Long Barrel with Window, Narrow Tongue Lug

Type LCCN-W


Part
Copper Conductor
Size
Stud Hole
Size
(In.)
Stud Hole
Spacing
W B T L
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
LCCN750-38DW-6 750 kcmil 3/8 1 1.3 2.88 0.28 5.72 Black P106 24 106 2 15/16
LCCN750-12W-6 750 kcmil 1/2 1.75 1.3 2.88 0.28 6.66 Black P106 24 106 2 15/16

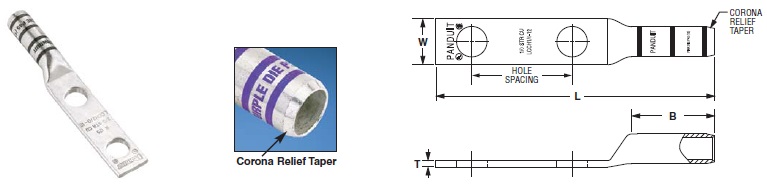

Code Conductor, Two-Hole, Long Barrel with Corona Relief Taper Lug

Type LCCH

Part
Copper Conductor
Size
Stud Hole
Size
(In.)
Stud Hole
Spacing
W B T L
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire
Strip
Length
LCCH1/0-12-X 1/0 AWG 1/2 1.75 0.8 1.44 0.12 4.86 Pink P42 12 42 1 1/2
LCCH2/0-12-X 2/0 AWG 1/2 1.75 0.85 1.5 0.13 4.98 Black P45 13 45 1 9/16
LCCH3/0-12-X 3/0 AWG 1/2 1.75 0.96 1.5 0.13 5.03 Orange P50 14 50 1 9/16
LCCH4/0-12-X 4/0 AWG 1/2 1.75 1.06 1.56 0.14 5.13 Purple P54 15 54 1 5/8
LCCH250-12-X 250 kcmil 1/2 1.75 1.17 1.61 0.14 5.23 Yellow P62 16 62 1 1/16
LCCH300-12-X 300 kcmil 1/2 1.75 1.19 2.24 0.16 5.94 White P66 17 66 2 5/16
LCCH350-12-X 350 kcmil 1/2 1.75 1.28 2.24 0.17 5.99 Red P71 18 71 2 5/16
LCCH400-12-6 400 kcmil 1/2 1.75 1.39 2.3 0.18 6.1 Blue P76 19 76 2 3/8
LCCH500-12-6 500 kcmil 1/2 1.75 1.54 2.5 0.22 6.36 Brown P87 20 87 2 9/16
LCCH600-12-6 600 kcmil 1/2 1.75 1.7 2.69 0.26 6.63 Green P94 22 94 2 3/4
LCCH750-12-6 750 kcmil 1/2 1.75 1.89 2.88 0.26 7.04 Black P106 24 106 2 15/16
LCCH1000-12-3 1000 kcmil 1/2 1.75 2.17 3 0.32 7.29 White P125 27 125 3 1/16

Flex Conductor, Two-Hole, Standard Barrel with Window Lug

Type LCDX


Part Number Flex Conductor Size
Code
Conductor
Size
Stud Hole
Size (In.)
Stud Hole
Spacing(In.)
Figure Dimensions(In.)
Panduit
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire Strip
Length
(In.)
Class
G, H, I, K, M
Diesel
Locomotive
W B T L
LCDX8-10A-L #8 AWG #8 AWG #8 AWG #10 0.63 0.41 0.42 0.08 1.74 Red P21 49 21 1/2
LCDX8-14A-L 1/4 0.63 0.48 0.42 0.07 1.83 Red P21 49 21 1/2
LCDX8-14B-L 1/4 0.75 0.48 0.42 0.07 1.95 Red P21 49 21 1/2
LCDX8-14D-L 1/4 1 0.48 0.42 0.07 2.2 Red P21 49 21 1/2
LCDX8-38D-L 3/8 1 0.6 0.42 0.05 2.42 Red P21 49 21 1/2
LCDX6-10A-L #6 AWG #6 AWG #6 AWG #10 0.63 0.46 0.48 0.08 1.82 Blue P24 7 24 9/16
LCDX6-10B-L #10 0.75 0.46 0.48 0.08 1.94 Blue P24 7 24 9/16
LCDX6-10G-L #10 1.5 0.46 0.48 0.08 2.69 Blue P24 7 24 9/16
LCDX6-10P-L #10 0.69 0.46 0.48 0.08 1.88 Blue P24 7 24 9/16
LCDX6-14A-L 1/4 0.63 0.48 0.48 0.08 1.91 Blue P24 7 24 9/16
LCDX6-14B-L 1/4 0.75 0.48 0.48 0.08 2.03 Blue P24 7 24 9/16
LCDX6-14D-L 1/4 1 0.48 0.48 0.08 2.28 Blue P24 7 24 9/16
LCDX6-56D-L 5/16 1 0.56 0.48 0.07 2.4 Blue P24 7 24 9/16
LCDX6-38D-L 3/8 1 0.62 0.48 0.06 2.5 Blue P24 7 24 9/16
LCDX4-14A-L #4 AWG
#5,#4,#3
AWG
#4 AWG 1/4 0.63 0.55 0.53 0.09 1.98 Gray P29 8 29 5/8
LCDX4-14B-L 1/4 0.75 0.55 0.53 0.09 2.1 Gray P29 8 29 5/8
LCDX4-14D-L 1/4 1 0.55 0.53 0.09 2.35 Gray P29 8 29 5/8
LCDX4-56D-L 5/16 1 0.55 0.53 0.09 2.47 Gray P29 8 29 5/8
LCDX4-38D-L 3/8 1 0.62 0.53 0.08 2.57 Gray P29 8 29 5/8
LCDX2-14A-E* #2 AWG #2 AWG #2 AWG 1/4 0.63 0.7 0.59 0.11 2.13 Brown P33 10 33 11/16
LCDX2-14B-E* 1/4 0.75 0.7 0.59 0.11 2.25 Brown P33 10 33 11/16
LCDX2-14D-E* 1/4 1 0.7 0.59 0.11 2.5 Brown P33 10 33 11/16
LCDX2-56D-E* 5/16 1 0.7 0.59 0.11 2.63 Brown P33 10 33 11/16
LCDX2-38D-E* 3/8 1 0.7 0.59 0.11 2.7 Brown P33 10 33 11/16
LCDX2-12-E* 1/2 1.75 0.75 0.59 0.09 3.87 Brown P33 10 33 11/16
LCDX1-14A-X #1 AWG #1 AWG #1 AWG 1/4 0.63 0.76 0.66 0.12 2.29 Green P37 11 37 3/4
LCDX1-14B-X 1/4 0.75 0.76 0.66 0.12 2.42 Green P37 11 37 3/4
LCDX1-14D-X 1/4 1 0.76 0.66 0.12 2.67 Green P37 11 37 3/4
LCDX1-56D-X 5/16 1 0.76 0.66 0.12 2.72 Green P37 11 37 3/4
LCDX1-38D-X 3/8 1 0.76 0.66 0.12 2.8 Green P37 11 37 3/4
LCDX1-12-X 1/2 1.75 0.8 0.66 0.12 3.97 Green P37 11 37 3/4
LCDX1/0-14A-X 1/0 AWG 1/0 AWG 1/0 AWG 1/4 0.63 0.85 0.72 0.13 2.45 Pink P42 12 42 3/4
LCDX1/0-14B-X 1/4 0.75 0.85 0.72 0.13 2.57 Pink P42 12 42 3/4
LCDX1/0-56B-X 5/16 0.75 0.85 0.72 0.13 2.57 Pink P42 12 42 3/4
LCDX1/0-56D-X 5/16 1 0.85 0.72 0.13 2.82 Pink P42 12 42 3/4
LCDX1/0-38D-X 3/8 1 0.85 0.72 0.13 2.89 Pink P42 12 42 3/4
LCDX1/0-12D-X 1/2 1 0.85 0.72 0.13 3.14 Pink P42 12 42 3/4
LCDX1/0-12-X 1/2 1.75 0.85 0.72 0.13 4.05 Pink P42 12 42 3/4
LCDX2/0-14A-X 2/0 AWG 2/0 AWG 2/0 AWG 1/4 0.63 0.96 0.83 0.13 2.59 Black P45 13 45 7/8
LCDX2/0-14B-X 1/4 0.75 0.96 0.83 0.13 2.72 Black P45 13 45 7/8
LCDX2/0-56D-X 5/16 1 0.96 0.83 0.13 2.97 Black P45 13 45 7/8
LCDX2/0-38D-X 3/8 1 0.96 0.83 0.13 3.03 Black P45 13 45 7/8
LCDX2/0-12D-X 1/2 1 0.96 0.83 0.13 3.28 Black P45 13 45 7/8
LCDX2/0-12-X 1/2 1.75 0.96 0.83 0.13 4.19 Black P45 13 45 7/8
LCDX3/0-14A-X 3/0 AWG 3/0 AWG 3/0 AWG 1/4 0.63 1.06 0.91 0.14 2.71 Orange P50 14 50 1
LCDX3/0-56D-X 5/16 1 1.06 0.91 0.14 3.1 Orange P50 14 50 1
LCDX3/0-38D-X 3/8 1 1.06 0.91 0.14 3.17 Orange P50 14 50 1
LCDX3/0-12-X 1/2 1.75 1.06 0.91 0.14 4.31 Orange P50 14 50 1
LCDX4/0-14A-X 4/0 AWG 4/0 AWG 4/0 AWG 1/4 0.63 1.19 1.03 0.16 2.74 Purple P54 15 54 1 1/16
LCDX4/0-14B-X 1/4 0.75 1.19 1.03 0.16 2.96 Purple P54 15 54 1 1/16
LCDX4/0-56D-X 5/16 1 1.19 1.03 0.16 3.31 Purple P54 15 54 1 1/16
LCDX4/0-38D-X 3/8 1 1.19 1.03 0.16 3.34 Purple P54 15 54 1 1/16
LCDX4/0-12D-X 1/2 1 1.19 1.03 0.16 3.61 Purple P54 15 54 1 1/16
LCDX4/0-12E-X 1/2 1.25 1.19 1.03 0.16 3.89 Purple P54 15 54 1 1/16
LCDX4/0-12-X 1/2 1.75 1.19 1.03 0.16 4.52 Purple P54 15 54 1 1/16
LCDX250-38D-X 250 kcmil 262.6 kcmil 3/8 1 1.28 1.03 0.17 3.38 Yellow P62 16 62 1 1/16
LCDX250-38-X 3/8 1.75 1.28 1.03 0.17 4.13 Yellow P62 16 62 1 1/16
LCDX250-12E-X 1/2 1.25 1.28 1.03 0.17 3.93 Yellow P62 16 62 1 1/16
LCDX250-12-X 1/2 1.75 1.28 1.03 0.17 4.56 Yellow P62 16 62 1 1/16
LCDX300-38D-6 300 kcmil 313.1 kcmil 3/8 1 1.39 1.19 0.18 3.56 Red P71 18 71H 1 1/4
LCDX300-12-6 1/2 1.75 1.39 1.19 0.18 4.74 Red P71 18 71H 1 1/4
LCDX350-56D-6 350 kcmil 373.7 kcmil 5/16 1 1.54 1.29 0.22 3.71 Blue P76 19 76H 1 3/8
LCDX350-38D-6 3/8 1 1.54 1.29 0.22 3.74 Blue P76 19 76H 1 3/8
LCDX350-38-6 3/8 1.75 1.54 1.29 0.22 4.49 Blue P76 19 76H 1 3/8
LCDX350-12E-6 1/2 1.25 1.54 1.29 0.22 4.29 Blue P76 19 76H 1 3/8
LCDX350-12-6 1/2 1.75 1.54 1.29 0.22 4.92 Blue P76 19 76H 1 3/8
LCDX450-38D-6 450 kcmil 444.4 kcmil 3/8 1 1.7 1.4 0.26 3.9 Brown P87 20 87H 1 7/16
LCDX450-12-6 1/2 1.75 1.7 1.4 0.26 5.08 Brown P87 20 87H 1 7/16
LCDX500-56D-6 500 kcmil 535.3 kcmil 5/16 1 1.89 1.48 0.26 4.05 Pink P99 L99 99H 1 9/16
LCDX500-38D-6 3/8 1 1.89 1.48 0.26 4.08 Pink P99 L99 99H 1 9/16
LCDX500-12E-6 1/2 1.25 1.89 1.48 0.26 4.76 Pink P99 L99 99H 1 9/16
LCDX500-12-6 1/2 1.75 1.89 1.48 0.26 5.26 Pink P99 L99 99H 1 9/16
LCDX600-12-6 600 kcmil 1/2 1.75 1.89 1.48 0.26 5.26 Pink P99 400 99H 1 9/16
LCDX650-38D-6 646.4 kcmil 3/8 1 1.95 1.45 0.3 4.08 Black P106 24 106H 1 1/2
LCDX650-12-6 1/2 1.75 1.95 1.45 0.3 5.26 Black P106 24 106H 1 1/2
LCDX750-38D-3 777.7 kcmil 3/8 1 2.17 1.66 0.32 4.62 Yellow P115 L115 115H 1 3/4
LCDX750-12E-3 1/2 1.25 2.17 1.66 0.32 5.06 Yellow P115 L115 115H 1 3/4
LCDX750-12G-3 1/2 1.5 2.17 1.66 0.32 5.31 Yellow P115 L115 115H 1 3/4
LCDX750-12-3 1/2 1.75 2.17 1.66 0.32 5.56 Yellow P115 L115 115H 1 3/4
LCDX750-58G-3 5/8 1.5 2.17 1.66 0.32 5.37 Yellow P115 L115 115H 1 3/4

Flex Conductor, Two-Hole, Standard Barrel with Window Lug, 45° Angle

Type LCDX-H


Part Number Flex Conductor Size
Code
Conductor
Size
Stud Hole
Size(In.)
Stud Hole
Spacing
(In.)
Figure Dimensions(In.)
Panduit
Color
Code
Panduit
Die Index
No.‡
Burndy
Die Index
No.‡
T&B
Die Index
No.‡
Wire Strip
Length
(In.)
Class
G, H, I, K, M
Diesel
Locomotive
W B T L
LCDX8-10AH-L #8 AWG #8 AWG #8 AWG #10 0.63 0.41 0.42 0.08 1.63 Red P21 49 21 1/2
LCDX8-14AH-L 1/4 0.63 0.48 0.42 0.07 1.71 Red P21 49 21 1/2
LCDX8-14BH-L 1/4 0.75 0.48 0.42 0.07 1.84 Red P21 49 21 1/2
LCDX8-14DH-L 1/4 1 0.48 0.42 0.07 2.09 Red P21 49 21 1/2
LCDX8-38DH-L 3/8 1 0.6 0.42 0.05 2.3 Red P21 49 21 1/2
LCDX6-10AH-L #6 AWG #6 AWG #6 AWG #10 0.63 0.46 0.48 0.08 1.68 Blue P24 7 24 9/16
LCDX6-10BH-L #10 0.75 0.46 0.48 0.08 1.81 Blue P24 7 24 9/16
LCDX6-10GH-L #10 1.5 0.46 0.48 0.08 2.56 Blue P24 7 24 9/16
LCDX6-10PH-L #10 0.69 0.46 0.48 0.08 1.74 Blue P24 7 24 9/16
LCDX6-14AH-L 1/4 0.63 0.48 0.48 0.08 1.77 Blue P24 7 24 9/16
LCDX6-14BH-L 1/4 0.75 0.48 0.48 0.08 1.89 Blue P24 7 24 9/16
LCDX6-14DH-L 1/4 1 0.48 0.48 0.08 2.14 Blue P24 7 24 9/16
LCDX6-56DH-L 5/16 1 0.56 0.48 0.07 2.26 Blue P24 7 24 9/16
LCDX6-38DH-L 3/8 1 0.62 0.48 0.06 2.35 Blue P24 7 24 9/16
LCDX4-14AH-L #4 AWG
#5,#4,#3
AWG
#4 AWG 1/4 0.63 0.55 0.53 0.09 1.83 Gray P29 8 29 5/8
LCDX4-14BH-L 1/4 0.75 0.55 0.53 0.09 1.96 Gray P29 8 29 5/8
LCDX4-14DH-L 1/4 1 0.55 0.53 0.09 2.21 Gray P29 8 29 5/8
LCDX4-56DH-L 5/16 1 0.55 0.53 0.09 2.33 Gray P29 8 29 5/8
LCDX4-38DH-L 3/8 1 0.62 0.53 0.08 2.42 Gray P29 8 29 5/8
LCDX2-14AH-E* #2 AWG #2 AWG #2 AWG 1/4 0.63 0.7 0.59 0.11 1.92 Brown P33 10 33 11/16
LCDX2-14BH-E* 1/4 0.75 0.7 0.59 0.11 2.04 Brown P33 10 33 11/16
LCDX2-14DH-E* 1/4 1 0.7 0.59 0.11 2.29 Brown P33 10 33 11/16
LCDX2-56DH-E* 5/16 1 0.7 0.59 0.11 2.42 Brown P33 10 33 11/16
LCDX2-38DH-E* 3/8 1 0.7 0.59 0.11 2.49 Brown P33 10 33 11/16
LCDX2-12H-E* 1/2 1.75 0.75 0.59 0.09 3.66 Brown P33 10 33 11/16
LCDX1-14AH-X #1 AWG #1 AWG #1 AWG 1/4 0.63 0.76 0.66 0.12 2.06 Green P37 11 37 3/4
LCDX1-14BH-X 1/4 0.75 0.76 0.66 0.12 2.18 Green P37 11 37 3/4
LCDX1-14DH-X 1/4 1 0.76 0.66 0.12 2.43 Green P37 11 37 3/4
LCDX1-56DH-X 5/16 1 0.76 0.66 0.12 2.49 Green P37 11 37 3/4
LCDX1-38DH-X 3/8 1 0.76 0.66 0.12 2.56 Green P37 11 37 3/4
LCDX1-12H-X 1/2 1.75 0.8 0.66 0.12 3.73 Green P37 11 37 3/4
LCDX1/0-14AH-X 1/0 AWG 1/0 AWG 1/0 AWG 1/4 0.63 0.85 0.72 0.13 2.21 Pink P42 12 42 3/4
LCDX1/0-14BH-X 1/4 0.75 0.85 0.72 0.13 2.33 Pink P42 12 42 3/4
LCDX1/0-56BH-X 5/16 0.75 0.85 0.72 0.13 2.33 Pink P42 12 42 3/4
LCDX1/0-56DH-X 5/16 1 0.85 0.72 0.13 2.58 Pink P42 12 42 3/4
LCDX1/0-38DH-X 3/8 1 0.85 0.72 0.13 2.64 Pink P42 12 42 3/4
LCDX1/0-12DH-X 1/2 1 0.85 0.72 0.13 2.89 Pink P42 12 42 3/4
LCDX1/0-12H-X 1/2 1.75 0.85 0.72 0.13 3.81 Pink P42 12 42 3/4
LCDX2/0-14AH-X 2/0 AWG 2/0 AWG 2/0 AWG 1/4 0.63 0.96 0.83 0.13 2.3 Black P45 13 45 7/8
LCDX2/0-14BH-X 1/4 0.75 0.96 0.83 0.13 2.43 Black P45 13 45 7/8
LCDX2/0-56DH-X 5/16 1 0.96 0.83 0.13 2.68 Black P45 13 45 7/8
LCDX2/0-38DH-X 3/8 1 0.96 0.83 0.13 2.74 Black P45 13 45 7/8
LCDX2/0-12DH-X 1/2 1 0.96 0.83 0.13 3.03 Black P45 13 45 7/8
LCDX2/0-12H-X 1/2 1.75 0.96 0.83 0.13 3.9 Black P45 13 45 7/8
LCDX3/0-14AH-X 3/0 AWG 3/0 AWG 3/0 AWG 1/4 0.63 1.06 0.91 0.14 2.39 Orange P50 14 50 1
LCDX3/0-56DH-X 5/16 1 1.06 0.91 0.14 2.78 Orange P50 14 50 1
LCDX3/0-38DH-X 3/8 1 1.06 0.91 0.14 2.85 Orange P50 14 50 1
LCDX3/0-12H-X 1/2 1.75 1.06 0.91 0.14 3.99 Orange P50 14 50 1
LCDX4/0-14AH-X 4/0 AWG 4/0 AWG 4/0 AWG 1/4 0.63 1.19 1.03 0.16 2.67 Purple P54 15 54 1 1/16
LCDX4/0-14BH-X 1/4 0.75 1.19 1.03 0.16 2.79 Purple P54 15 54 1 1/16
LCDX4/0-56DH-X 5/16 1 1.19 1.03 0.16 3.04 Purple P54 15 54 1 1/16
LCDX4/0-38DH-X 3/8 1 1.19 1.03 0.16 3.07 Purple P54 15 54 1 1/16
LCDX4/0-12DH-X 1/2 1 1.19 1.03 0.16 3.36 Purple P54 15 54 1 1/16
LCDX4/0-12EH-X 1/2 1.25 1.19 1.03 0.16 3.62 Purple P54 15 54 1 1/16
LCDX4/0-12H-X 1/2 1.75 1.19 1.03 0.16 4.25 Purple P54 15 54 1 1/16
LCDX250-38DH-X 250 kcmil 262.6 kcmil 3/8 1 1.28 1.03 0.17 3.11 Yellow P62 16 62 1 1/16
LCDX250-38H-X 3/8 1.75 1.28 1.03 0.17 3.86 Yellow P62 16 62 1 1/16
LCDX250-12EH-X 1/2 1.25 1.28 1.03 0.17 3.66 Yellow P62 16 62 1 1/16
LCDX250-12H-X 1/2 1.75 1.28 1.03 0.17 4.29 Yellow P62 16 62 1 1/16
LCDX300-38DH-6 300 kcmil 313.1 kcmil 3/8 1 1.39 1.19 0.18 3.29 Red P71 18 71H 1 1/4
LCDX300-12H-6 1/2 1.75 1.39 1.19 0.18 4.47 Red P71 18 71H 1 1/4
LCDX350-56DH-6 350 kcmil 373.7 kcmil 5/16 1 1.54 1.29 0.22 3.4 Blue P76 19 76H 1 3/8
LCDX350-38DH-6 3/8 1 1.54 1.29 0.22 3.43 Blue P76 19 76H 1 3/8
LCDX350-38H-6 3/8 1.75 1.54 1.29 0.22 4.18 Blue P76 19 76H 1 3/8
LCDX350-12EH-6 1/2 1.25 1.54 1.29 0.22 3.98 Blue P76 19 76H 1 3/8
LCDX350-12H-6 1/2 1.75 1.54 1.29 0.22 4.61 Blue P76 19 76H 1 3/8
LCDX450-38DH-6 450 kcmil 444.4 kcmil 3/8 1 1.7 1.4 0.26 3.75 Brown P87 20 87H 1 7/16
LCDX450-12H-6 1/2 1.75 1.7 1.4 0.26 4.74 Brown P87 20 87H 1 7/16
LCDX500-56DH-6 500 kcmil 535.3 kcmil 5/16 1 1.89 1.48 0.26 3.7 Pink P99 L99 99H 1 9/16
LCDX500-38DH-6 3/8 1 1.89 1.48 0.26 3.73 Pink P99 L99 99H 1 9/16
LCDX500-12EH-6 1/2 1.25 1.89 1.48 0.26 4.41 Pink P99 L99 99H 1 9/16
LCDX500-12H-6 1/2 1.75 1.89 1.48 0.26 4.91 Pink P99 L99 99H 1 9/16
LCDX600-12H-6 600 kcmil 1/2 1.75 1.89 1.48 0.26 4.91 Pink P99 400 99H 1 9/16
LCDX650-38DH-6 646.4 kcmil 3/8 1 1.95 1.45 0.3 3.74 Black P106 24 106H 1 1/2
LCDX650-12H-6 1/2 1.75 1.95 1.45 0.3 4.92 Black P106 24 106H 1 1/2
LCDX750-38DH-3 777.7 kcmil 3/8 1 2.17 1.66 0.32 4.21 Yellow P115 L115 115H 1 3/4
LCDX750-12EH-3 1/2 1.25 2.17 1.66 0.32 4.65 Yellow P115 L115 115H 1 3/4
LCDX750-12GH-3 1/2 1.5 2.17 1.66 0.32 4.9 Yellow P115 L115 115H 1 3/4
LCDX750-12H-3 1/2 1.75 2.17 1.66 0.32 5.15 Yellow P115 L115 115H 1 3/4
LCDX750-58GH-3 5/8 1.5 2.17 1.66 0.32 4.9 Yellow P115 L115 115H 1 3/4

Flex Conductor, Two-Hole, Standard Barrel with Window Lug, 90° Angle

Type LCDX-F










相关AOA体育(China)官方网站

单孔AOA体育(China)官方网站

单孔AOA体育(China)官方网站

对接AOA体育(China)官方网站

对接AOA体育(China)官方网站

Blank Tongue Lugs

Blank Tongue Lugs

铜制机械接头

铜制机械接头

aluminum compression lugs and splices

aluminum compression lugs and splices

点击这里给我发消息
周一至周五 9:00-18:00

联系AOA体育(China)官方网站

  • 办公地址:深圳市福田区车公庙泰然工贸园212栋201室
  • 邮政编码:518040
  • 电子邮件:
  • 服务电话:+86 (0755)83898856 83896600 83898810
  • 传真号码:+86 (0755)83898840

关注AOA体育(China)官方网站


在线客服
